Remove/Install Poly-V-Belt Tensioning Device - AR13.25-P-3220MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 except code B01 (48V technology)
Shown on model 177

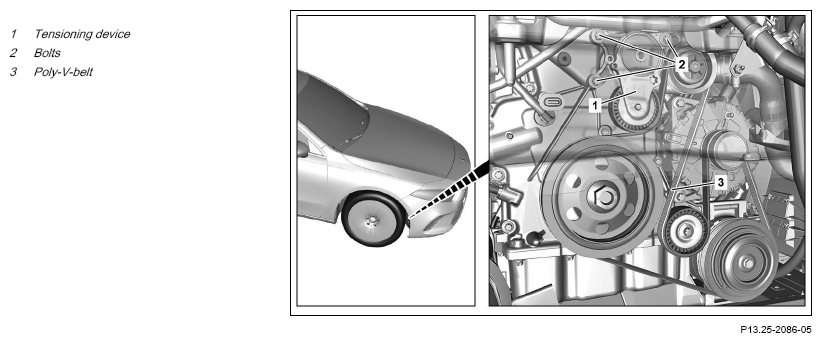

Fig 1: Poly-V-Belt Tensioning Device Components Location - Engine 260 In Model 118 Except Code B01 (Shown On Model 177)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove poly-V-belt (3). | AR13.22-P-1202MFC | |
| 2 | Remove right engine mount. | AR22.10-P-1102MFD | |
| 3 | Remove screws (2). | *BA13.25-P-1001-01Z | |
| 4 | Remove clamping device (1). | ||
| 5 | Check tensioning device (1) for damage, wear and contamination. | If there are problems: ↓ Replace clamping device (1). |
|
| 6 | Install in the reverse order. |
BELT TENSIONING DEVICE
| Number | Designation | Engine 260 except code 9U8 | Engine 260 with code 9U8 | |
|---|---|---|---|---|
| BA13.25-P-1001-01Z | Bolt, tensioning device to timing case cover | Nm | 20 | 20 |
