Remove/Install Timing Tensioning Rail - AR05.10-P-8127MFG
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove the chain tensioner. | AR05.10-P-7800MFG | |
| 2 | Remove the timing case cover. | AR01.40-P-8000MFG | |

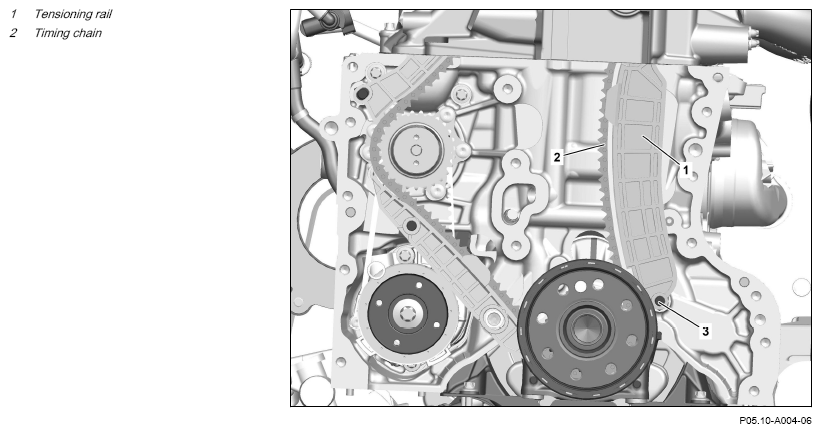

| 3 | Slightly lift timing chain (2) and remove tensioning rail (1). | ||
| 4 | Check timing chain (2) for damage. | If damage is found: ↓ Replace timing chain (2). |
AR05.10-P-7602MFG |
| 5 | Install in the reverse order. |
