Remove/Install Retaining Lock For Crankshaft/Ring Gear - AR03.30-P-5000MFG
Engine 139 in model 118, 177, 247
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Install | |||
| 1 | Remove transmission. | Engine 139 in model 118, 177, 247 with transmission 724.1 | AR27.10-P-0009MFA |
| 2 | Check toothing of ring gear at flywheel for wear and damage. | If there are problems: ↓ Replace flywheel. |
AR03.30-P-8001MFG |

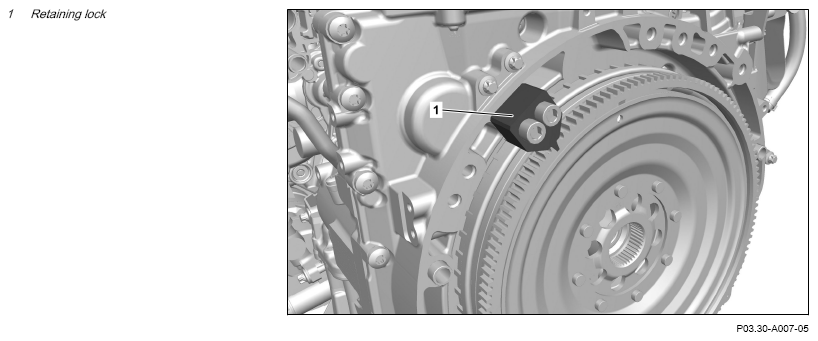

| 3 | Insert retaining lock (1) in crankcase until this engages in starter ring gear and then secure via screws. | Fig 1 | |
| Remove | |||
| 4 | Remove fixing bolts and remove retaining lock (1). | Fig 1 | |
| 5 | Install transmission. | Engine 139 in model 118, 177, 247 with transmission 724.1 | AR27.10-P-0009MFA |
