Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MFG

Engine 139 in model 118, 177, 247

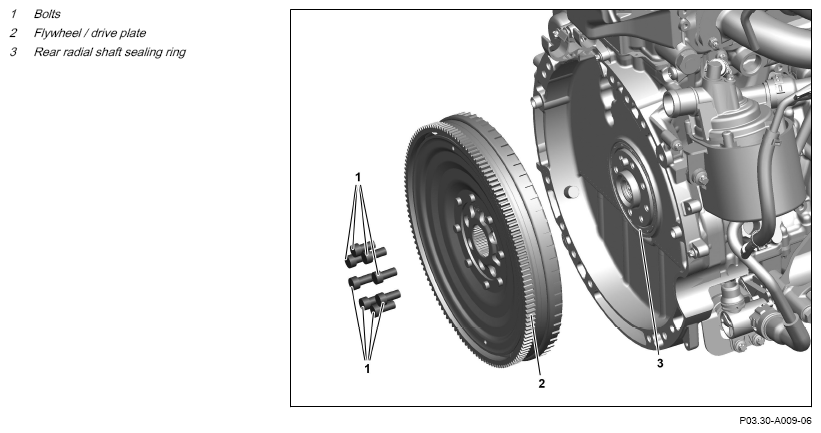

Fig 1: Flywheel/Drive Plate Components Location - Engine 139 In Model 247

G16048260

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Remove transmission.		AR01.10-P-2401MFG
2	Remove crankshaft Hall sensor.		AR15.12-P-2136MFG
3	Install retaining lock for crankshaft/starter ring gear.		AR03.30-P-5000MFG
4	Release bolts (1).	Do not use an impact wrench/driver or a similar compressed air tool to unfasten the screw/bolts (1). Otherwise, damage to the crankshaft will occur. Replace bolts (1) and uniformly tighten in a diagonal pattern. Bolt, two-mass flywheel/drive plate to crankshaft	*BA03.30-P-1002-01CA
5	Unscrew bolts (1) and remove flywheel/drive plate (2).	Aid of helper required. Dowel pin of crankshaft determines installation position.
6	Check rear radial shaft sealing ring (3) for leaks.	If there are problems, ↓ Replace rear radial shaft sealing ring (3).	AR03.20-P-3064MFG
7	Install in the reverse order.

FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 139
BA03.30-P-1002-01CA	Bolt, two-mass flywheel/drive plate to crankshaft	Stage 1	Nm	45
BA03.30-P-1002-01CA	Bolt, two-mass flywheel/drive plate to crankshaft	Stage 2	∠°	90
