Remove/Install Steering Column Tube - Ar46.10-D-0400TS

Model 907

Shown on model 907

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install

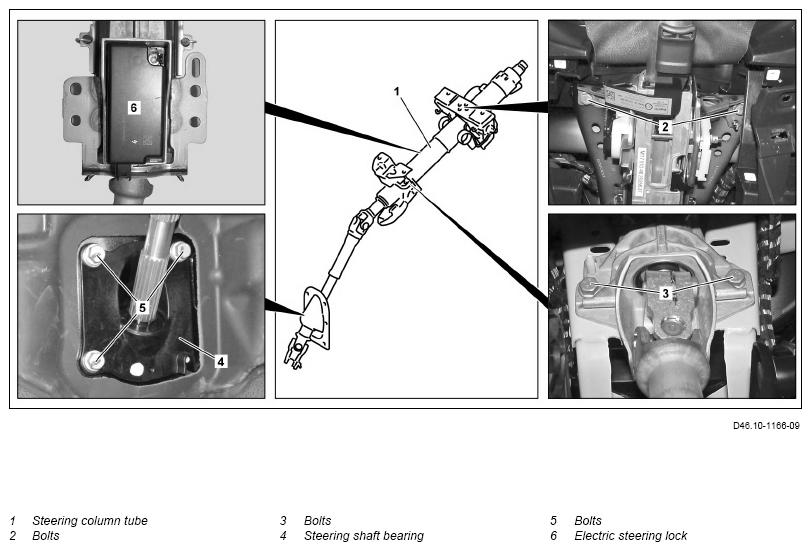

1	Remove lower steering shaft from steering column tube (1).	Model 907
			AR46.10-D-7310TS
		Lower steering shaft remains on the steering gear.
2	Remove steering column module.		AR54.25-D-2802TS
3	Remove left defroster vent for the side window.		AR83.10-D-4719TS
4	Release trim in center of instrument panel and remove with attached electric lines from working area.		AR68.10-D-0001TS

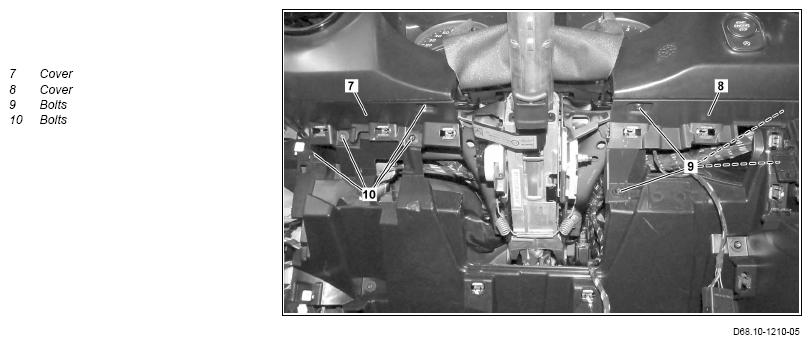

5	Remove screws (9, 10).
6	Remove covers (7, 8).
7.1	Remove bolts (5).	Model 907
		Screw/nut, steering shaft bearing to firewall	*BA46.10-N-1003-05TS
8	Remove bolts (2, 3) and remove steering column tube (1) from instrument panel support.	Bolt, steering column tube on steering shaft to instrument panel support	*BA46.10-N-1005-05TS
9	Disconnect electrical connector from electric steering lock (6).
10	Remove steering column tube (1).	Route steering column tube (1) into vehicle interior. Model 907 Installation  : Check steering shaft bearing (4) is correctly seated.
11	Install in the reverse order.

STEERING WHEEL, STEERING COLUMN TUBE, STEERING SHAFT

Number	Designation		Model 907
BA46.10-N-1003-05TS	Screw/nut, steering shaft bearing to firewall	Nm	23

STEERING WHEEL, STEERING COLUMN TUBE, STEERING SHAFT

Number	Designation		Model 907
BA46.10-N-1005-05TS	Bolt, steering column tube on steering shaft to instrument panel support	Nm	20
