Inspect Poly-V-Belt For Wear And Damage - AP13.22-D-1351TSC

Engine 274.9 in model 907

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Check

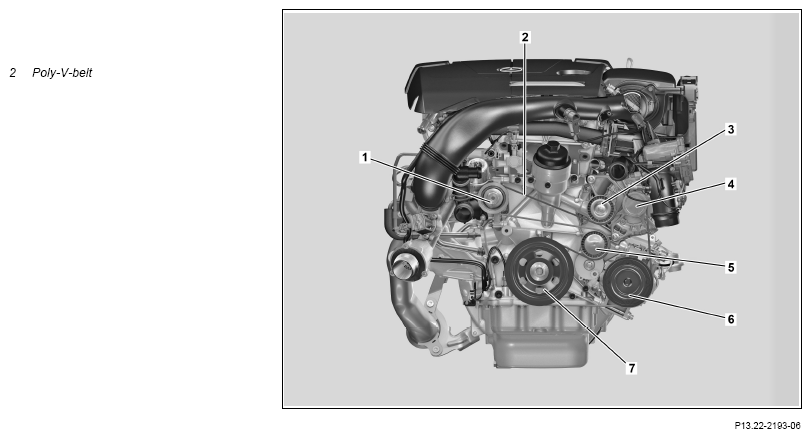

1	Check poly-V-belt (2) in visible areas from above for wear and damage, and compare with damage profiles.		AP13.22-D-1351-01A
		Commercially available devices/tools  Swiveling inspection mirror with lighting, (e.g. HAZET 1977-1) If damage or wear is present. ↓ Replace poly-V-belt (2). Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).
			AR13.22-D-1202TSC
		After obtaining special order.
