Remove/Install Windshield Wiper System For Windshield - Ar82.30-D-0002TS
Model 907

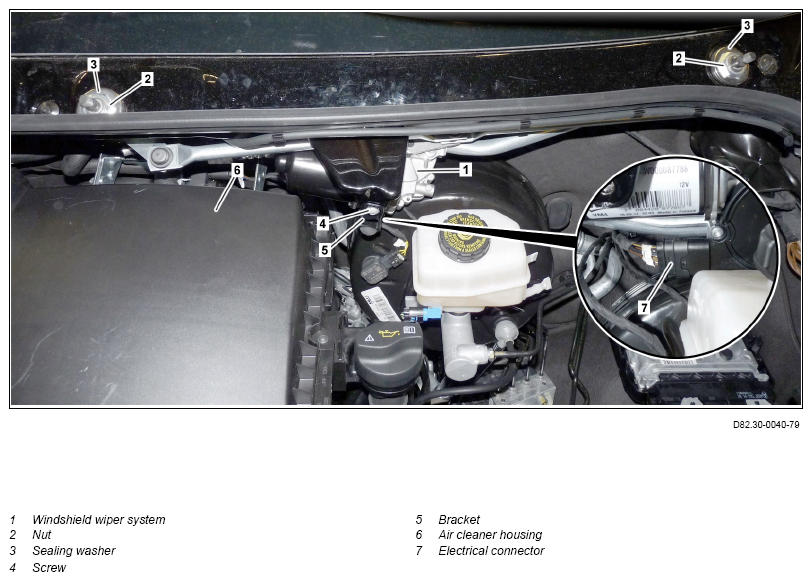

Shown on model 907 with engine 651.9
Shown on model 910 with engine 651.9
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove windshield wiper arms. | AR82.30-D-6952TS | |
| 2 | Unscrew screw (4). | ||
| 3 | Remove holder (5). | ||
| 4 | Release air filter housing (6) and remove from working area. | Model 907 with engine 274, 642, 651 | |
| Model 907 with engine 642 | AR09.10-D-1150TSV | ||
| Model 907 with engine 651 | AR09.10-D-1150TS | ||

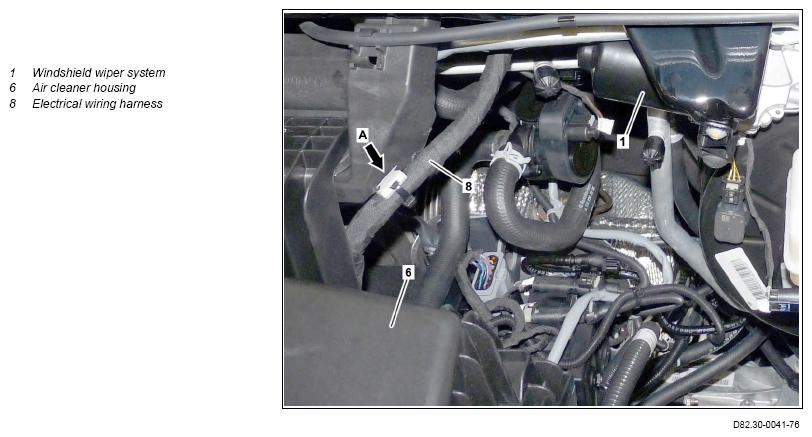

| 5 | Unclip electrical wiring harness (8) (arrow A). | Fig 1 | |
| 6 | Unscrew nuts (2). | *BA82.30-N-1002-01TS | |
| 7 | Remove windshield wiper system (1) until the electrical connector (7) is accessible. | ||
| 8 | Disconnect electrical connector (7) and remove windshield wiper system (1). | ||
| 9 | Install in the reverse order. |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA82.30-N-1002-01TS | Nut, windshield wiper bearing to body | Nm | 11 |
