Remove/Install Upper Window Frame Lining For Front Window In Side Wall - Ar68.30-D-0021TSR

Model 907.6/7

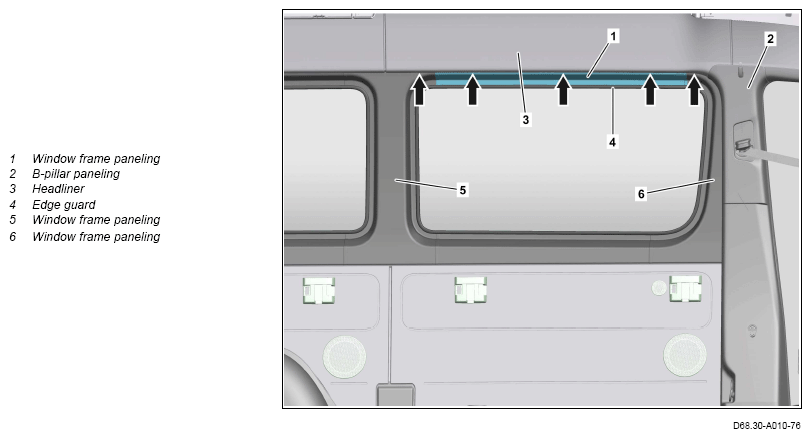

Shown on model 907.7 on the left side of the vehicle with code IR4 (wheelbase 3,665 mm), with code V21 (luxury interior trim), with code EL9 (2-way front and rear speaker system) and except code T19 (left sliding door) for removed passenger bench seats

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Release corresponding B-pillar trim (2) in the top area.	Remove/install B-pillar trim (2) on the driver's side Model 907.7	AR68.30-D-4707TS
		Remove/install B-pillar trim (2) on the front passenger side Model 907.7	AR68.30-D-4706TS
		Remove/install B-pillar trim (2) Model 907.6	AR68.30-D-4705TS
2	Release roof lining (3) from the retaining tabs (arrows) from the side wall in the area of the front window.	Long wedge	Fig 1
3	Release edge guard (4) in the area of the window frame lining (1).
4	Lift window frame lining (1), pry off, and remove.	: Ensure that the window frame lining (1) overlaps the window frame linings (5, 6) and is aligned centrally. The window frame lining (1) is bonded to the side wall using tape.
		Long wedge	Fig 1
5	Remove masking tape residues from the side wall with a suitable tool.	Cleaner	*BR00.45-Z-1025-04A
6	Remove masking tape residues from the window frame lining (1) with a suitable tool.	When reusing the window frame lining (1).
		Cleaner	*BR00.45-Z-1025-04A
7	Attach new adhesive tape strips to the window frame lining (1).	When reusing the window frame lining (1). Ensure that the adhesive strips are positioned in the same way as the adhesive strips that were removed previously. Otherwise adhesion problems may occur.
		Double-sided tape with polyethylene foam support, Scotch-Mount 9528	*BR00.45-Z-1197-02A
8	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)
