Remove/Install B-Pillar Trim On Front Passenger Side - Ar68.30-D-4706TS
Model 907.2/7

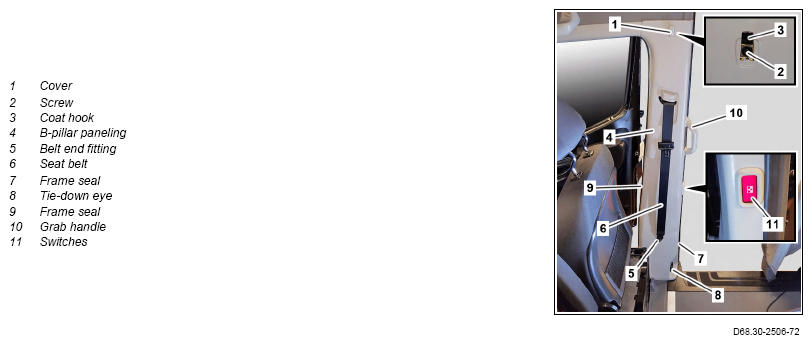

Shown on model 907.7 with code SB2 (Comfort front passenger seat), code T55 (Electrical actuator for right sliding door), and code T74 (Grab handle for entrance)

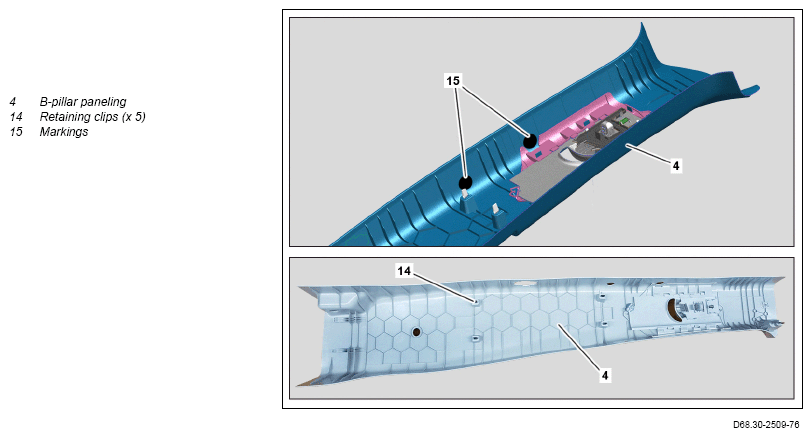

Shown on model 907.7 with code SB2 (Comfort front passenger seat), code T55 (Electrical actuator for right sliding door), and code T74 (Grab handle for entrance)

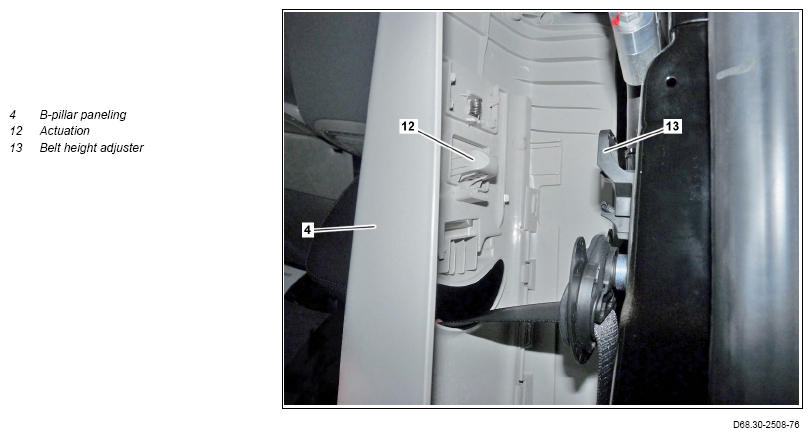

Shown on model 907.7 with code T55 (Electrical actuator for right sliding door) and code T74 (Grab handle for entrance)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Move front seat and seat backrest of front seat to front-most position | Model 907.2/7 with code S04 (Front passenger seat (standard seat)) Model 907.2/7 with code SB2 (Comfort co-driver's seat) Model 907.2/7 with code SB4 (Suspension seat, comfort version, co-driver's seat) Model 907.2/7 with code SF2 (Electrically adjustable co-driver's seat) Model 907.2 with code SL1 (Co-driver's seat) |
|
| 2 | Remove cover (1) | Fig 2 | |
| 3 | Remove screw (2) and remove coat hook (3) from B-pillar | ||
| 4 | Remove tie-down eye (8) from B-pillar | *BA68.50-D-1001-03TS | |
| 5 | Remove grab handle (10) from B-pillar | Model 907.2/7 with code T74 (Handle for entrance) |
|
| Clip remover | Fig 2 | ||
| 6.1 | Remove seat belt end fitting (5) from B-pillar | Model 907.2/7 with code S04 (Front passenger seat (standard seat)) Model 907.2/7 with code S23 (Co-driver's seat double seat) Model 907.2/7 with code SB2 (Comfort co-driver's seat) Model 907.2/7 with code SF2 (Electrically adjustable co-driver's seat) |
|
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | Model 907.2/7 with code S23 (Co-driver's seat double seat) |
AH00.00-P-0015-01CW | |
with code S23 (Co-driver's seat double seat) Installation: Commercially available devices/tools 17 mm open end wrench bit for torque wrench |
|||
| *BA91.40-N-1002-03TS | |||
| 6.2 | Remove seat belt end fitting (5) from front seat | Model 907.2/7 with code SB4 (Suspension seat, comfort version, co-driver's seat) Model 907.2 with code SL1 (Co-driver's seat) |
|
| AR91.40-D-1030-01TS | |||
| *BA91.40-N-1005-03TS | |||
| Fig 1 | |||
| 7 | Unclip B-pillar trim (4) from top to bottom | ||
| Fig 1 | |||
| 8 | Disconnect electrical connector for switch (11) | Model 907.7 with code T55 (Electric operation of sliding door on right) |
|
| 9 | Remove B-pillar trim (4) from B-pillar and thread seat belt (6) with seat belt end fitting (5) through seat belt opening | with code T74 (Handle for entrance) Installation: When replacing the B-pillar trim (4), drill 2 holes on the basis of the existing markings (15). |
|
| Check | |||
| 10 | Check retaining clips (14) for damage and correct fit | If retaining clip (14) is damaged. ↓ Replace retaining clip (14). If retaining clip (14) is not correctly positioned in mount on B-pillar trim (4). ↓ Position retaining clip (14) correctly. |
|
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Perform function check of seat belt height adjuster (13) |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA68.50-D-1001-03TS | Screw, tie-down eye to B-pillar | Nm | 18 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1002-03TS | Bolt, belt end fitting to B-pillar | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1005-03TS | Bolt, seat belt end fitting on seat frame for front seat | Nm | 35 |
