Remove/Install Stowage Compartment In Passenger-Side Instrument Panel Bottom Section - Ar68.10-D-1610TS
Model 907
with code FJ4 (Stowage compartment under cockpit)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

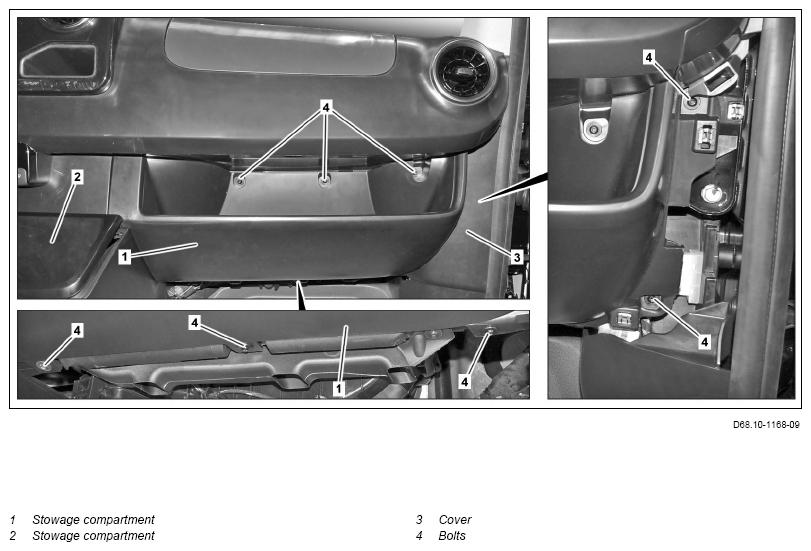

| 1 | Release stowage compartment (2) | AR68.10-D-1513TS | |
| 2 | Remove panel (3) | Fig 1 | |
| 3 | Remove bolt s (4) | ||
| 4 | Remove stowage compartment (1) | ||
| 5 | Install in the reverse order |
