Remove/Install Load Compartment Floor - Ar68.80-D-5800TSR

Model 907.6

with code V43 (Wood flooring)

except code VK8 (Floor covering, plastic)

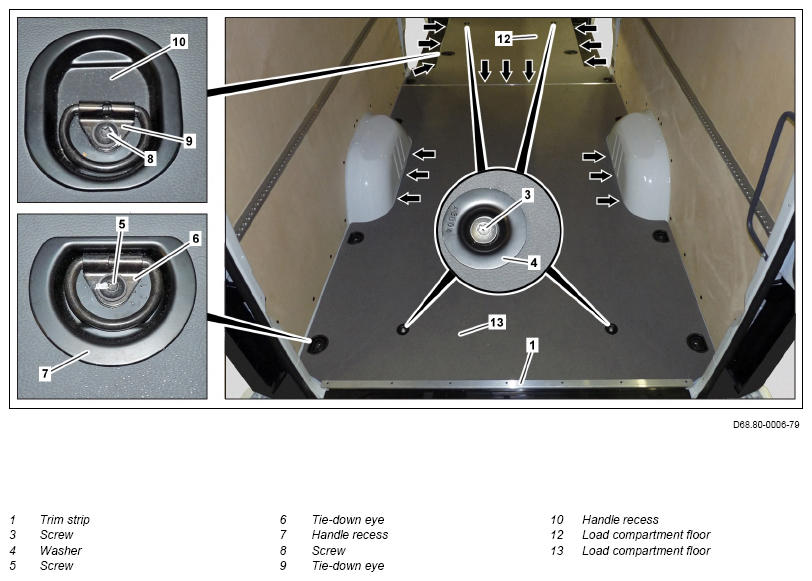

Shown on model 907.6 except code VV2 (Cargo retainer rail system) and except code Y26 (Chock)

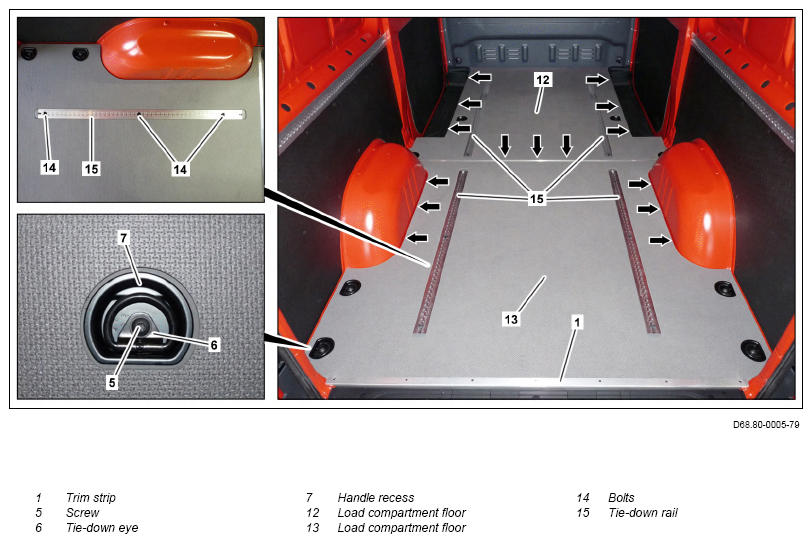

Shown on model 907.6 with code VV2 (Cargo retainer rail system) and except code Y26 (Chock)

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove trim strip (1).
2	Remove bracket for chock on right D-pillar.	Model 907.6 with code Y26 (Chock)
3	Remove wheel well trims.	Model 907.6 with code V52 (Loadable wheel well)	AR68.30-D-0016TS
4.1	Remove screws (3) and washers (4) with spacer sleeves.	Model 907.6 except code VV2 (Cargo retainer rail system)
4.2	Remove screws (14) and remove tie-down rails (15).	Model 907.6 with code VV2 (Cargo retainer rail system)
		Screw, tie-down rail to load compartment floor	*BA68.50-D-1003-03TS
5	Remove screws (5) and remove tie-down eyes (6) with handle recess shells (7) and spacer sleeves.	The number of tie-down eyes (6) may vary depending on the vehicle equipment.
		Screw, tie-down eye to load compartment floor	*BA68.50-D-1002-03TS
6	Carefully disconnect load compartment floor (13) from Velcro strips (arrows) and remove to the rear.	Helper required.
7	Carefully disconnect load compartment floor (12) from Velcro strips (arrows) and remove to the rear.	Helper required.
8	Install in the reverse order.
