Remove/Install Wheel Well Trim - Ar68.30-D-0016TS
Model 907.6

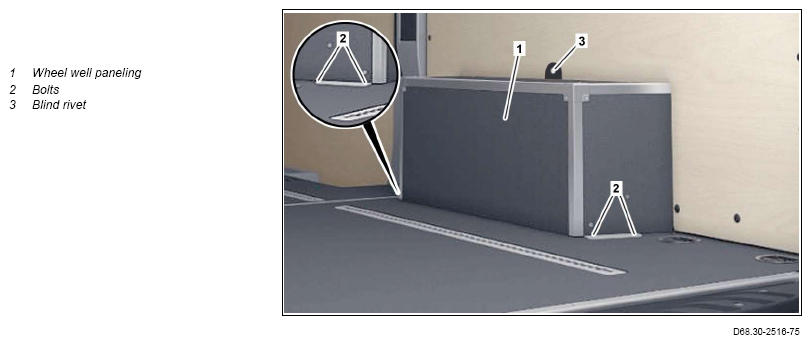

Shown on right side of vehicle
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Unscrew bolts (2). | ||
| 2 | Drill out blind rivet (3). | ||
| 3 | Remove wheel well trim (1) to the rear. | ||
| 4 | Install in the reverse order. |
