Remove/Install Rear Door Side Window - AR67.30-P-0006ME
Model 167
MODIFICATION NOTES
| 13.08.2019 | Work procedure adapted. | (Operation steps 1 to 9 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

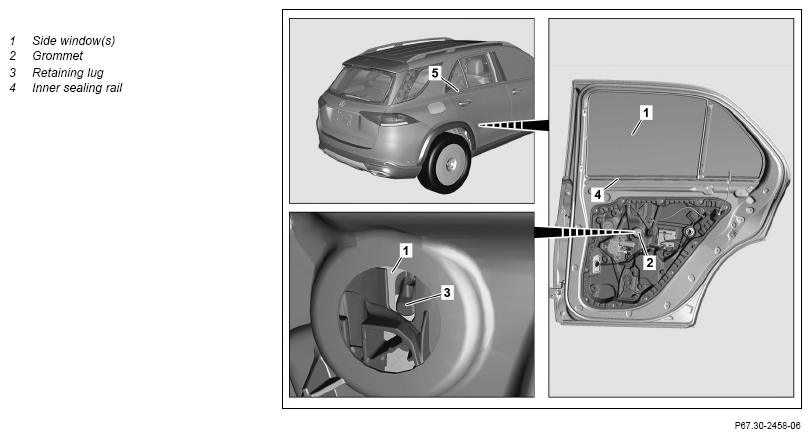

| 1 | Work the seal on the side window (1) of the rear door loose. | AR72.12-P-0001ME | |
| 2 | Remove grommet (2). | ||
| 3 | Connect the electrical connectors on the rear door trim. | ||
| 4 | Bring the side window (1) into position so that the retaining lug (3) is accessible through the opening of the grommet (2). | ||
| 5 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 6 | Release and disconnect electrical connectors from the door trim of the rear door and bring door trim out of the working area. | ||
| 7 | Release roller sun blind until the inner sealing rail (4) is accessible. | Model 167 with code 297 (Roller sun blinds in rear doors |
|
| 8 | Actuate retaining lug (3) and remove side window (1) upward. | ||
| 9 | Install in the reverse order. |
