Remove/Install Front Door Side Window - AR67.30-P-0008ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left or right outer sealing rail. | AR72.10-P-1700ME | |
| 2 | Remove grommets (2). | ||

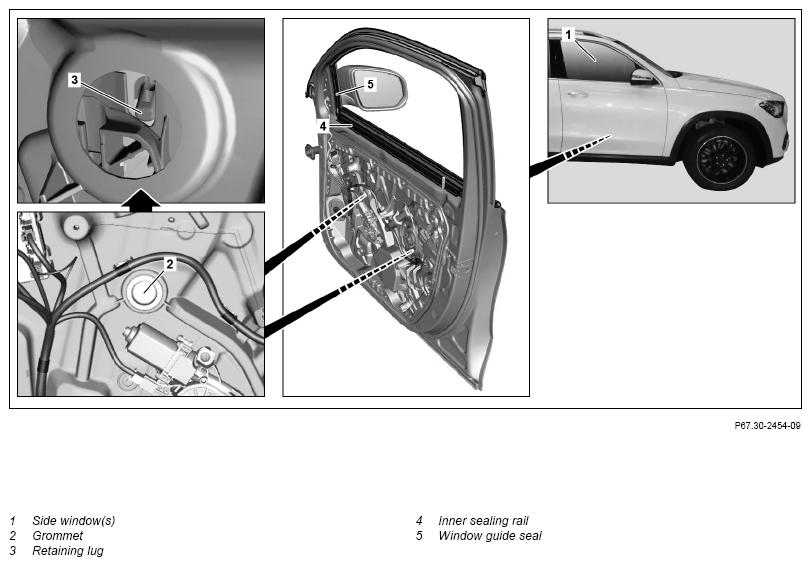

| 3 | Bring the side window (1) into position, so that the retaining lugs (3) are accessible through the openings of the grommets (2). | ||
| 4 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 5 | Release and disconnect electrical connectors from the door trim of the front door and bring door trim out of the working area. | ||
| 6 | Remove inner sealing rail (4). | ||
| 7 | Remove window guide seal (5) up to mirror triangle. | ||
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||
| 8 | Actuate retaining lugs (3) and remove side window (1) upward. | ||
| 9 | Install in the reverse order. |
REPAIR MATERIAL
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
