Remove/Install Outside Rail Seal - AR72.10-P-1700ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely lower corresponding side window.
2	Remove outside mirror.		AR88.70-P-9000ME

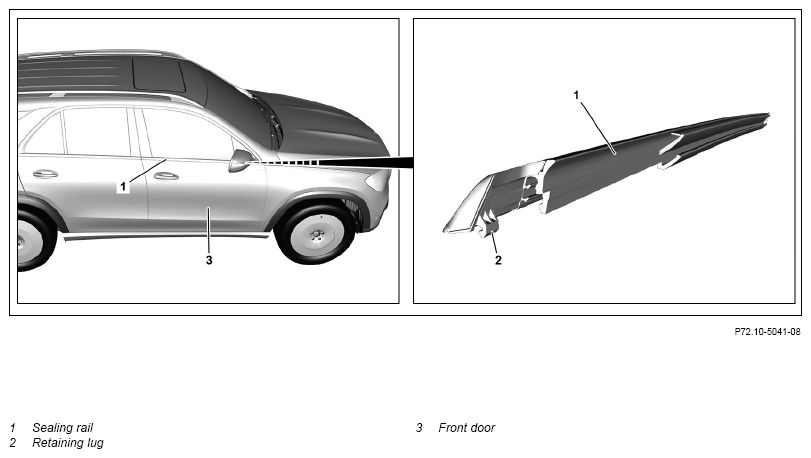

3	Remove sealing rail (1).	The retaining lug (2) must be inserted correctly in the front door (3). Otherwise, damage to the sealing rail (1) may occur.
		Make sure that the paint is not damaged. If the sealing rail (1) is too distorted after removal, ↓ replace sealing rail (1).
4	Install in the reverse order.
