Remove/Install Complete Sideview Mirror - AR88.70-P-9000ME
Model 167

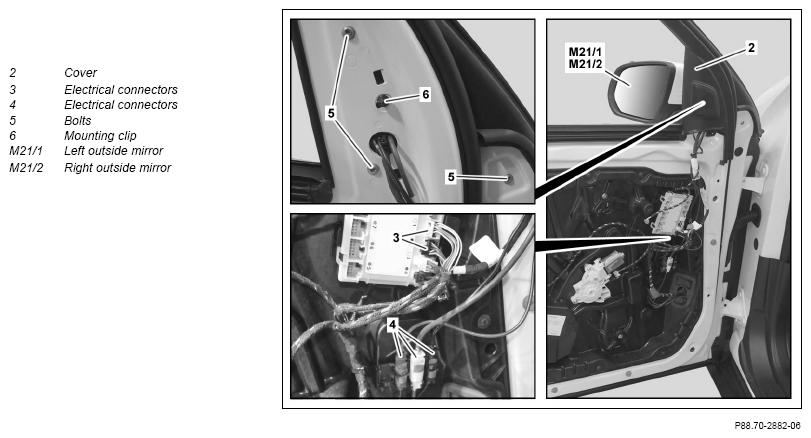

Shown on left side of vehicle
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left or right door trim, front door. | AR72.10-P-6575ME | |
| 2 | Remove cover (2) in the area of the outside mirror (M21/1, M21/2). | Model 167 with code 810 (Sound system) Model 167 with code 811 (Advanced sound system) Pay attention to the electrical connector of the front door tweeter located underneath. Otherwise it may be damaged. |
|
| 3 | Disconnect electrical connector of the front door tweeter. | Model 167 with code 810 (Sound system) Model 167 with code 811 (Advanced sound system) |
|
| 4 | Disconnect electrical connection (3). | ||
| 5 | Disconnect electrical connections (4). | ||
| 6 | Remove bolts (5). | ||

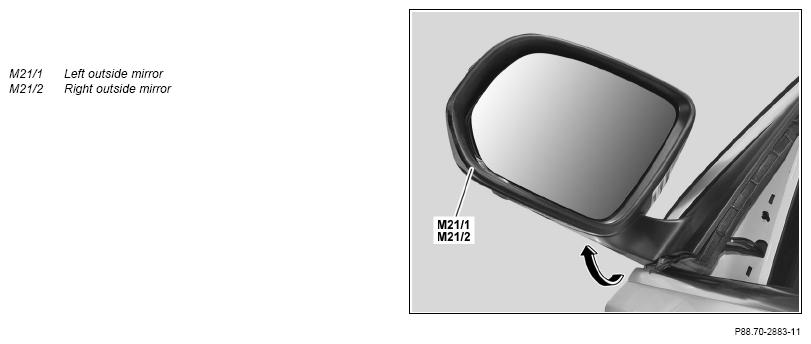

| 7 | Unclip retaining clip (6) and remove outside mirror (M21/1, M21/2) in the direction of the arrow. | ||
| 8 | Install in the reverse order | ||
| Calibrate | |||
| 9 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | Model 167 with code 501 (360° camera) |
|
| AD00.00-P-2000-06ME |
