Remove/Install Liftgate Hinge - AR72.20-P-2656MEC

Model 167.3

Courtesy of MERCEDES-BENZ USA

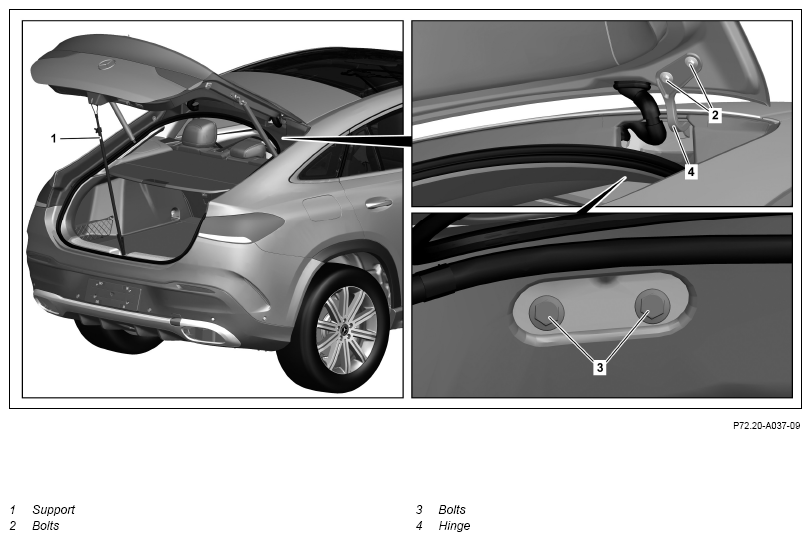

Shown on right side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove
1	Loosen roof lining and lower it until the screws (3) are accessible.		AR68.30-P-4300MEC
		Do not remove the windshield.
2	Support tailgate.	Support	Fig 2
3	Mark installation position of left or right hinge (4) on roof frame and liftgate.
4	Remove screws (2) from the liftgate.	Only remove hinges (4) individually, with liftgate (1) installed and support attached . If both hinges (4) are to be removed, the second hinge (4) should only be removed after installing the first hinge (4). Otherwise, the liftgate may be damaged. Helper required.
5	Unscrew screws (3) from roof frame and remove hinge (4)	Helper required.
	Install
6	Align hinge (4) with the installation marking on the roof frame and tighten screws (3).	Helper required.
		Bolt/nut, hinge for liftgate to body	*BA72.20-P-1008-02J
7	Tighten screws (2) on the liftgate.	Helper required.
		Bolt, hinge to liftgate	*BA72.20-P-1005-02J
8	Remove support (1).
	Check
9	Check gap dimension on liftgate.		AR60.00-P-0900-01ME
		Sidewall to liftgate	*BE60.00-P-1013-01LA
		Liftgate to rear bumper	*BE60.00-P-1016-01LA
		Outside of taillamp to inside of taillamp	*BE60.00-P-1018-01LA
		Liftgate to roof	*BE60.00-P-1025-01LA
		Feeler gauge	Fig 1
		If there is a problem, ↓ Adjust trunk lid.
			AR72.20-P-0002MEC
10	Repair paintwork damage at all open screw connections using a touch-up paint pen.
11	Attach roof lining.		AR68.30-P-4300MEC

GAP DIMENSIONS

Number	Designation			Model 167.3
BE60.00-P-1013-01LA	Sidewall to liftgate	Dimension "K"	mm	4 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.3
BE60.00-P-1016-01LA	Liftgate to rear bumper	Dimension "N1"	mm	4, 5 (±1, 5)
		Dimension "N2"	mm	5, 5 (±1, 5)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.3
BE60.00-P-1018-01LA	Outside of taillamp to inside of taillamp	Dimension "P"	mm	4 (±1, 5)
		For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.3
BE60.00-P-1025-01LA	Liftgate to roof	Dimension "V"	mm	4, 5 (±1, 0)
		For picture, see		AR60.00-P-0900-01ME

LIFTGATE

Number	Designation		Model 167
BA72.20-P-1005-02J	Bolt, hinge to liftgate	Nm	36

LIFTGATE

Number	Designation		Model 167
BA72.20-P-1008-02J	Bolt/nut, hinge for liftgate to body	Nm	36

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support (170 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
