Remove/Install Driver Knee AIRBAG - AR91.60-P-0200MFA

Model 118, 177, 243, 247

with code 294 (Knee airbag)

Shown on model 177.0 with code 294 (Knee airbag)

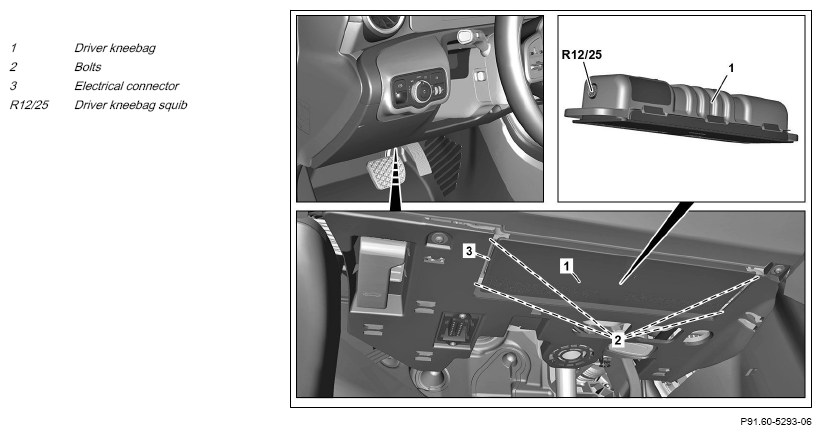

Fig 1: Driver Knee Airbag Components Location - Model 247 With Code 294 (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.		AR54.10-P-0003MFA
2	Remove lower instrument panel trim on driver's side.		AR68.10-P-1501MFA
3	Unscrew screws (2) and remove driver knee airbag (1) far enough until electrical connector (3) is accessible.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
		Bolt, knee airbag to crossmember below instrument panel	*BA91.60-P-1006-01Q
4	Release and disconnect electrical connector (3) from driver knee airbag squib (R12/25).	Removal lever	Fig 2
5	Remove driver knee airbag (1) and place on a suitable surface.
6	Install in the reverse order.
	Check
7	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the driver knee airbag (1).
			AD00.00-P-2000-06MFA

Fig 2: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
