Remove/Install HERMES Control Unit - AR82.95-P-0019MFB
Model 243, 247
with code 362 (HERMES communications module LTE)

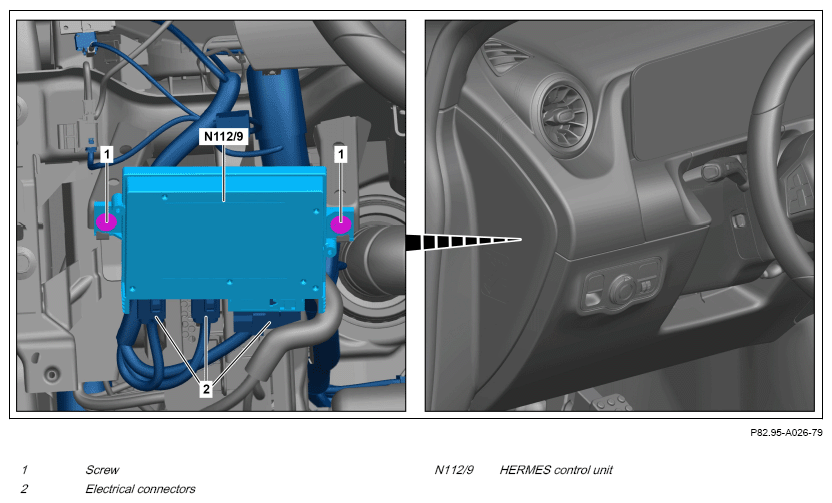

Shown on model 247
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |
| 2 | Release and disconnect electrical connectors (2). | ||
| 3 | Remove screws (1). | ||
| 4 | Remove HERMES control unit (N112/9). | ||
| 5 | Install in the reverse order. | ||
| 6 | Perform commissioning of HERMES control unit (N112/9). | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-06MFA |
