Remove/Install Headliner - AR68.30-P-4300MFA

Model 177.0, 243, 247

Courtesy of MERCEDES-BENZ USA

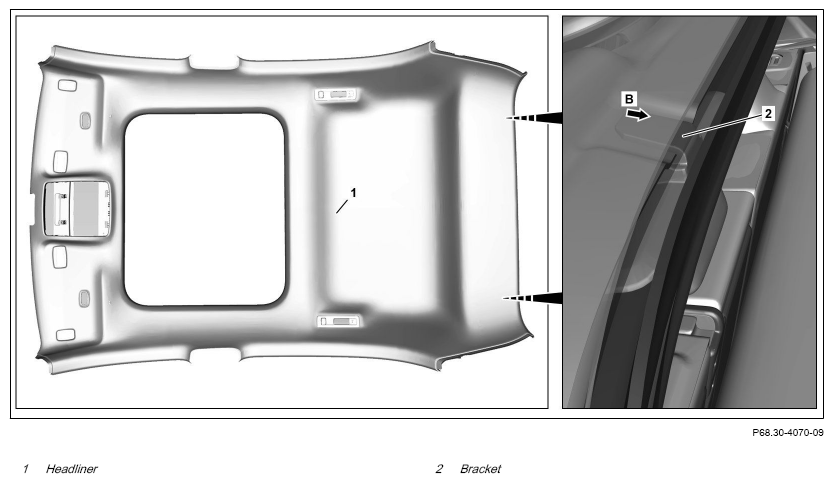

Shown on model 177.0 with code 413 (panoramic sliding sunroof)

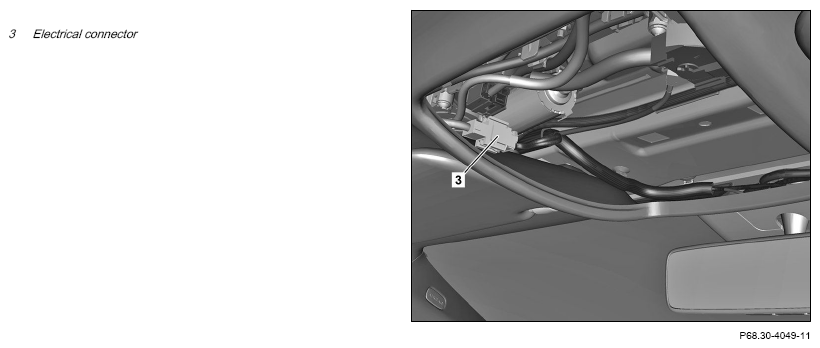

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA

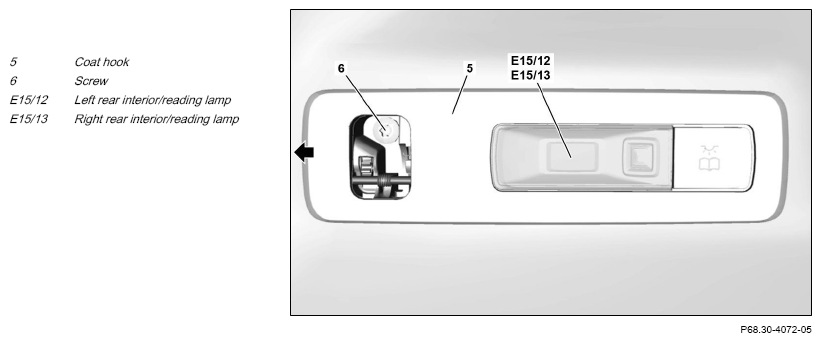

Shown on model 177.0 with code 413 (Panoramic sliding sunroof) on rear right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove front passenger seat.	Model 177.0	AR91.10-P-1000MFA
2	Remove sun visors.		AR68.60-P-5480MFA
3	Remove overhead control panel control unit (N70).		AR82.20-P-1000MFA
4	Release and disconnect electrical connection (3).
5	Remove A-pillar trims.		AR68.30-P-4050MFA
6	Remove top B-pillar trims.		AR68.30-P-4705MFA
7	Remove C-pillar trims.	Model 177.0	AR68.30-P-4491MFA
		Model 243.7, 247.0/7	AR68.30-P-4490MFB
		Model 243.6, 247.6	AR68.30-P-4490MFX
8	Remove D-pillar trims.	Model 243.6, 247.6	AR68.30-P-4497MFX
9	Release edge guard at door cutouts and trunk cutout in working area.
10	Fold up clothes hooks (5) and remove screws (6).	Model 177.0 with code 413 (Panoramic sliding sunroof/glass roof) The number of clothes hooks (5) varies depending on the vehicle equipment.
11	Carefully unclip clothes hooks (5) in direction of arrow and release and disconnect electrical connector of left rear interior/reading lamp (E15/12) and/or right rear interior/reading lamp (E15/13).	Model 177.0 with code 413 (Panoramic sliding sunroof/glass roof) Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. Place a suitable cloth underneath and carefully unclip in order to not damage or contaminate roof lining (1). The number of clothes hooks (5) varies depending on the vehicle equipment.
12	Remove grab handles from roof.	Model 177.0 except code 413 (Panoramic sliding sunroof/glass roof) Model 243, 247	AR68.30-P-4330MFA
13	Remove cover panels of the brackets for the partitioning net.	Model 243, 247.6/7 with code U40 (Safety net for luggage cover)
14	Remove covers from the inside rearview mirror (A67).	Carefully unclip covers so as not to damage catch hooks. If a cover is damaged: ↓ Replace corresponding cover.	AR68.40-P-0001MFA
15	Press together catch hooks on roof frame of overhead control panel and unclip roof lining (1) from front roof frame.
16	Release velcro fastener in center of roof lining (1) and carefully lower roof lining (1).	Model 177.0, 243, 247 except code 413 (Panoramic sliding sunroof/glass roof) Helper required.
17	Carefully pull down roof lining (1) from panoramic sliding sunroof.	Model 177.0, 243, 247 with code 413 (Panoramic sliding sunroof/glass roof) Roof lining (1) is guided along front panoramic sliding sunroof on left and right. Helper required.
18	Release velcro fasteners in the rear area of the roof lining (1) and slightly lower roof lining (1).	Model 243, 247 The number of velcro fasteners varies depending on the vehicle equipment.
19	Guide brackets (2) of roof lining (1) out of roof frame in the direction of the arrow (B).	Model 177.0, 243, 247.0 Helper required.
20	Remove roof lining (1) through trunk cutout.	Do not kink or bend headliner (1) excessively. Otherwise, cracks or breakage will occur on the roof lining (1). Two helpers required.
21	Prepare new headliner (1) for installation.	When replacing roof paneling (1).	AR68.30-P-4305-16MFA
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
22	Install in the reverse order.
