Remove/Install Multimedia Connection Unit In Center Console - AR82.60-P-1037MFA
Model 118, 177, 247
Shown on model 177
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover (1) at center console until front center console USB port (X115/5) is accessible. | Do not crush or kink or subject electric lines to tension. Otherwise, this can result in damage to the lines and can impair function. |
AR68.20-P-2350MFA |
| 2 | Release and disconnect electrical connectors (2). | ||

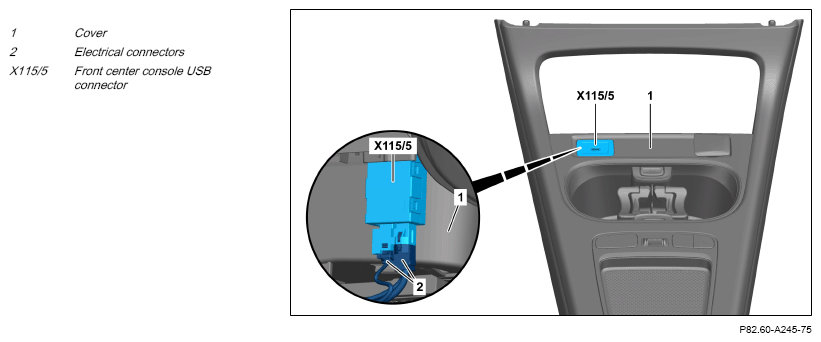

| 3 | Remove front center console USB port (X115/5) from cover (1). | Fig 1 | |
| 4 | Install in the reverse order. |
