Remove/Install Liquid-Cooled Charge Air Cooler - AR09.41-P-0105MFG
Engine 139 in model 118, 177, 247

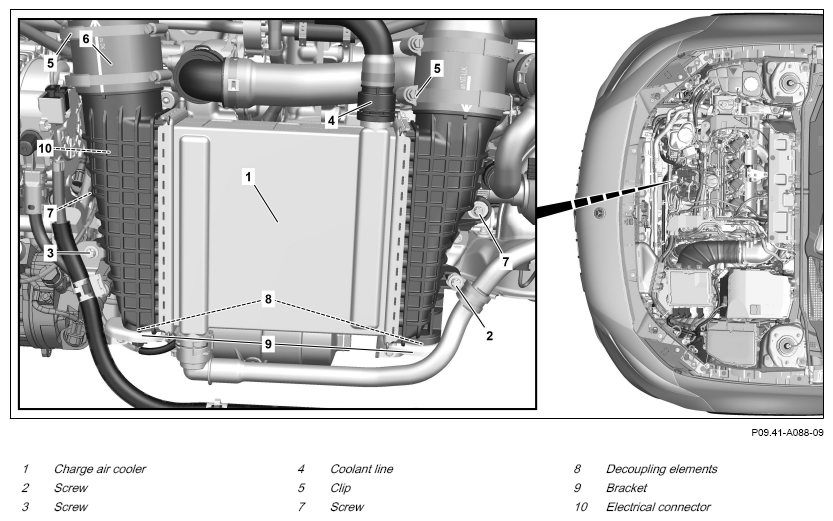

Fig 1: Liquid-Cooled Charge Air Cooler Components Location - Engine 139 In Model 247 (Shown On Model 177)
Shown on model 177
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove the fan. | AR20.40-P-5050MFG | |
| 2 | Remove charge air pipe downstream of exhaust gas turbocharger. | AR09.41-P-1333MFG | |
| 3 | Drain off low-temperature circuit coolant. | AR09.41-P-6834MFG | |
| 4 | Remove screw/bolt (2). | *BA09.41-P-1011-01FA | |
| 5 | Remove screw (3). | *BA09.41-P-1006-01FA | |
| 6 | Remove coolant line (4) on charge air cooler (1). | AR20.20-P-7441-01RQ | |
| 7 | Seal exposed connections with suitable protective covers. | Fig 2 | |
| 8 | Open clamps (5). | *BA09.41-P-1003-01FA | |
| 9 | Secure charge air cooler (1) against falling down. | ||
| 10 | Remove holders (9). | *BA00.10-P-1002-04A | |
| 11 | Remove screws (7). | *BA09.41-P-1012-01FA | |
| 12 | Attach radiator guard plate. | ||
| Guard plate for radiator/condenser | WF58.50-P-0110-01A | ||

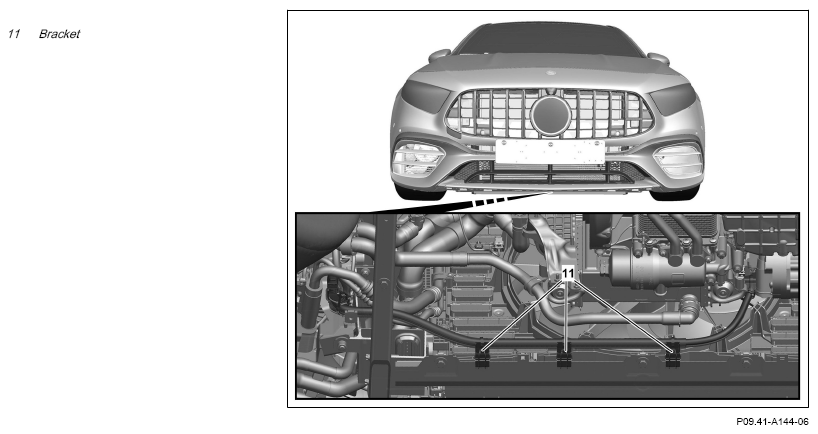

| 13 | Unclip brackets (11) and place wiring harness to one side. | ||
| 14 | Pull the charge air cooler (1) forwards and release and disconnect the electrical connector (10). | ||
| 15 | Remove the charge air cooler (1). | ||
| 16 | Check charge air cooler (1) for damage. | If the charge air cooler (1) is damaged: ↓ Replace charge air cooler (1). |
|
| 17 | Remove the holders (9) and the decoupling element (8) from the charge air cooler (1). | When installing a new charge air cooler (1). | |
Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A | ||
| 18 | Remove the pressure sensor upstream of the throttle valve (B28/6) from the charge air cooler (1). | When installing a new charge air cooler (1). | AR09.41-P-0003MFG |
| 19 | Check decoupling elements (8) for damage. | If the decoupling elements (8) are damaged, ↓ replace decoupling elements (8). |
|
| 20 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 21 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 22 | Install lower engine compartment lining. | AR61.20-P-1105MFR |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1003-01FA | Charge air hose clamp to charge air cooler | Nm | 6 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1006-01FA | Screw, cable bracket to charge air cooler | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1011-01FA | Bolt, coolant line on charge air cooler | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1012-01FA | Screw, water-cooled charge air cooler to holder/stud bolt | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
