Remove/Install Rear Engine Support - AR22.10-P-4360MFG

Engine 139 in model 118, 177, 247

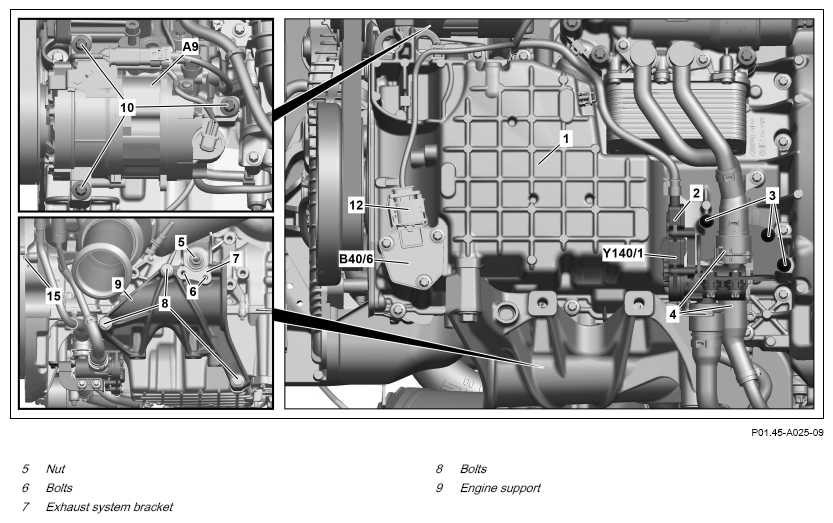

Fig 1: Rear Engine Support Components Location - Engine 139 In Model 247 (Shown On Model 177)

Courtesy of MERCEDES-BENZ USA

Shown on model 177

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove right front axle shaft.		AR33.30-P-0620MFA
2	Remove lower engine stabilizer mount.		AR22.10-P-1155MFG
3	Remove nut (5).	Nut, catalytic converter to exhaust system holder	*BA49.10-P-1010-02X
4	Remove screws (6) and remove exhaust system bracket (7).	Bolt, exhaust system holder to intermediate shaft support	*BA49.10-P-1004-02X
5	Remove screws (8) and remove engine carrier (9).	Bolt, engine carrier to crankcase/oil pan	*BA22.10-P-1001-02E
6	Install in the reverse order.

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Engine 139
BA22.10-P-1001-02E	Bolt, engine carrier to crankcase/oil pan	M10	Stage 1	Nm	58
			Stage 2	∠°	90

EXHAUST SYSTEM

Number	Designation		Engine 139 in model 118, 177, 247
BA49.10-P-1004-02X	Bolt, exhaust system holder to intermediate shaft support	Nm	20

EXHAUST SYSTEM

Number	Designation		Engine 139 in model 118, 177, 247
BA49.10-P-1010-02X	Nut, catalytic converter to exhaust system holder	Nm	20
