Remove/Install Belt Pulley/Vibration Damper - AR03.30-P-1600MFG
Engine 139 in model 118, 177, 247
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove poly-V-belt. | AR13.22-P-1202MFG | |

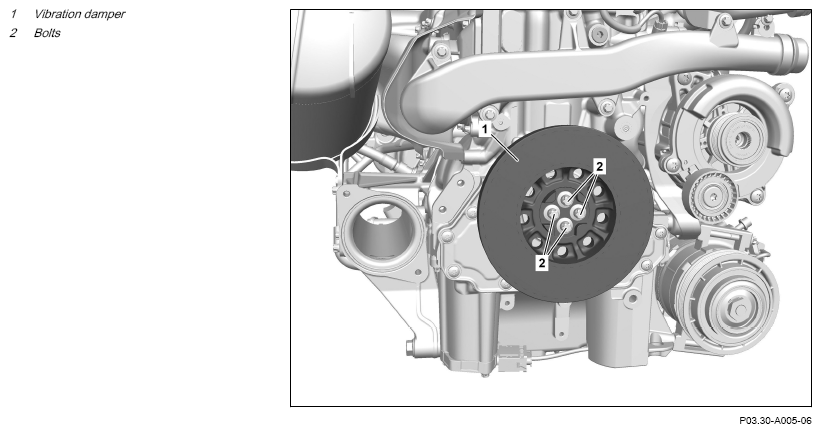

| 2 | Attach counterholder to vibration damper (1) and remove screws (2). | *BA03.30-P-1001-01CA | |
| Fig 2 | |||
| 3 | Remove the vibration damper (1). | ||
| 4 | Check end cover with front radial shaft sealing ring for leaks. | If there are problems: ↓ Replace end cover with front radial shaft sealing ring. |
AR01.40-P-8922MFG |
| 5 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check engine for proper operation and leak tightness. | ||
| 7 | Install lower engine compartment lining. | AR61.20-P-1105MFR |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 139 | ||
|---|---|---|---|---|
| BA03.30-P-1001-01CA | Bolt, belt pulley/vibration damper to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
