Remove/Install Cap With Front Radial Shaft Sealing Ring - AR01.40-P-8922MFG
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove belt pulley/vibration damper. | AR03.30-P-1600MFG | |
| 2 | Remove end cover with radial shaft sealing ring (1). | AR01.40-P-8922-03MFG | |
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| *BA01.40-P-1002-01K | |||
| Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | *BR00.45-Z-1002-06A | ||
| *BA01.40-P-1002-01K | |||

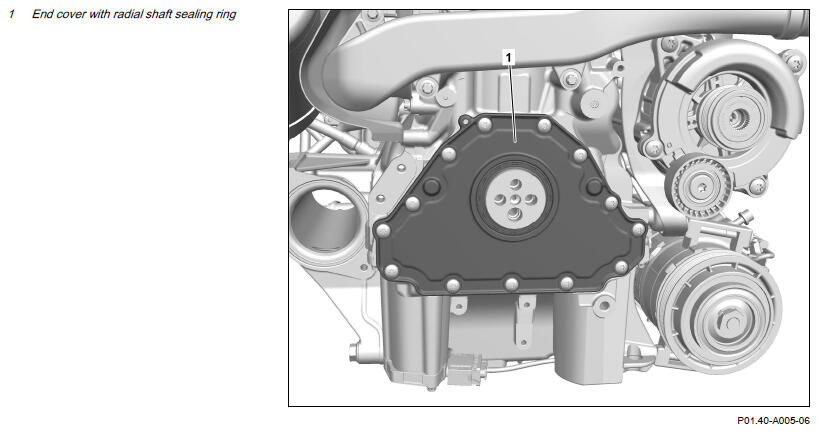

| Fig 1 | |||
| 3 | Install in the reverse order. | ||
| Check | |||
| 4 | Check engine oil level and correct. | Engine 139 in model 118, 177, 247 | |
| Engine 139 in model 118, 177 | AP18.00-P-1812AKI | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Carry out engine test run and check engine for proper leak tightness and leak tightness. | ||
| 6 | Install front right fender liner. | AR88.10-P-1301MFA |
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA01.40-P-1002-01K | Screw, rear end cover to crankcase/oil pan (belt side) | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | A 000 989 01 60 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
