Remove/Install Steering Knuckle - AR33.25-P-0400FR

Model 257

Courtesy of MERCEDES-BENZ USA

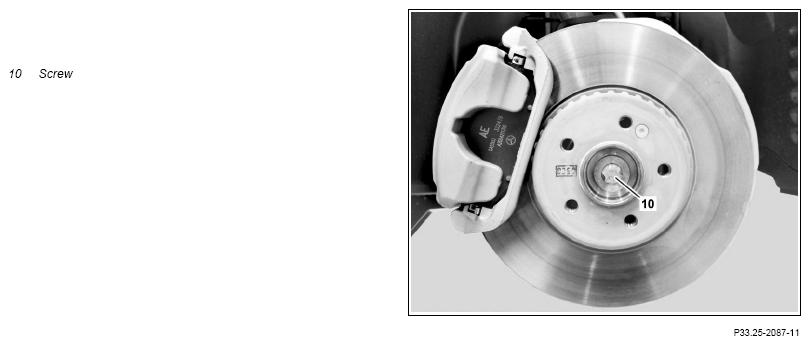

Shown on right side of vehicle with CODE M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

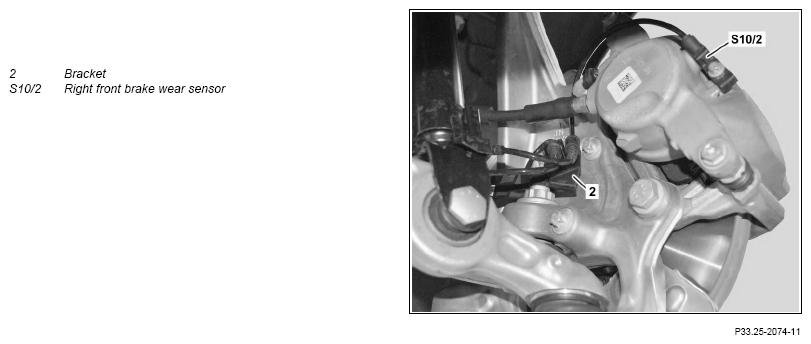

Shown on right side of vehicle

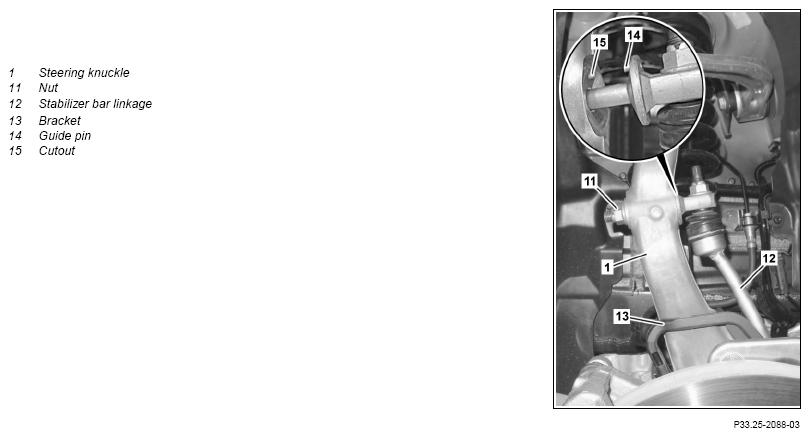

Fig 1: Steering Knuckle Component Location - Model 257 With Code M005

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle with code M005 (4MATIC)

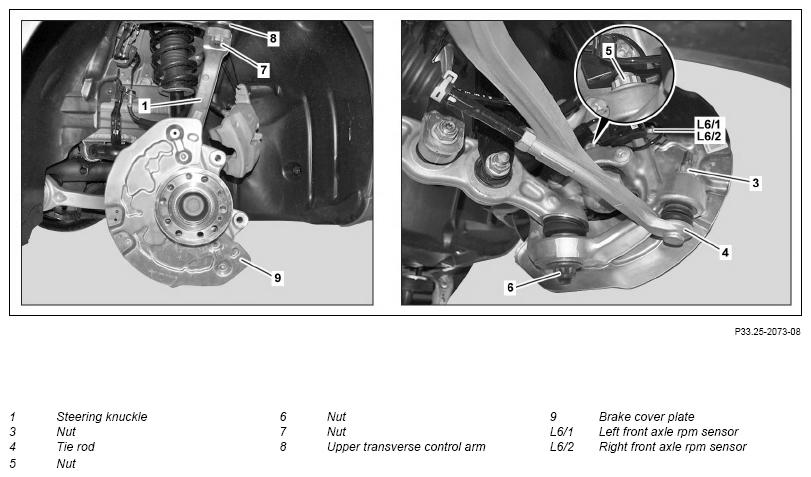

Fig 2: Steering Knuckle Component Location - Model 257 Except Code M005

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle except code M005 (4MATIC)

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front wheel.		AR40.10-P-1102A
2	Remove screw (10).	Model 257 with engine 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0620OIB
		Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0620MSA
3	Remove brake disk.		AR42.10-P-0220FR
4	Detach left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) and place to one side with electrical line connected.	Model 257.361	AR42.30-P-0713LWA
		Model 257 (except 257.361)	AR42.30-P-0713FR
5	Unclip electrical line from bracket (13).	Model 257 with code M005 (Vehicles with 4MATIC/all-wheel drive)
6	Unhook front right brake wear sensor (S10/2) from bracket (2).	When removing the right steering knuckle (1).
7	Unscrew nut (11).	Model 257 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Nut, torsion bar linkage to steering knuckle	*BA32.35-P-1006-02B
8	Unscrew nut (3) and detach tie rod (4).	Counterhold the ball head and do not use an impact wrench/driver. Otherwise, the ball head or steering knuckle (1) may be damaged.
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1001-01P
9	Unscrew nut (5).	Counterhold the ball head and do not use an impact wrench/driver. Otherwise, the ball head or steering knuckle (1) may be damaged.
		Nut, strut rod to steering knuckle	*BA33.20-P-1003-01U
10	Unscrew nut (6).	Counterhold the ball head and do not use an impact wrench/driver. Otherwise, the ball head or steering knuckle (1 may be damaged.
		Nut, spring control arm to steering knuckle	*BA33.20-P-1001-01U
11	Unscrew nut (7) and detach upper transverse control arm (8) from steering knuckle (1).	Counterhold the ball head and do not use an impact wrench/driver. Otherwise, the ball head or steering knuckle (1 may be damaged.
		Nut, steering knuckle to transverse control arm	*BA33.20-P-1006-01U
12	Pull torsion bar linkage (12) out of steering knuckle (1).	Model 257 with code M005 (Vehicles with 4MATIC/all-wheel drive) The guide pin (14) must latch into the cutout (15) in the steering knuckle (1). Otherwise, the steering knuckle (1) will be damaged.
13	Guide steering knuckle (1) out of strut rod and spring link and remove.
14	Remove brake cover plate (9).	When replacing the steering knuckle (1).
		Bolt, front axle brake cover plate to steering knuckle	*BA42.10-P-1003-06J
15	Remove wheel bearing.	When replacing the steering knuckle (1).
			AR33.20-P-0302FR
16	Detach bracket (13).	Model 257 with code M005 (Vehicles with 4MATIC/all-wheel drive) When replacing the steering knuckle (1).
17	Install in the reverse order.
