Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683ME

Model 167.1/3

Model 167.9

except code 224 (Individual rear seats)

except code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

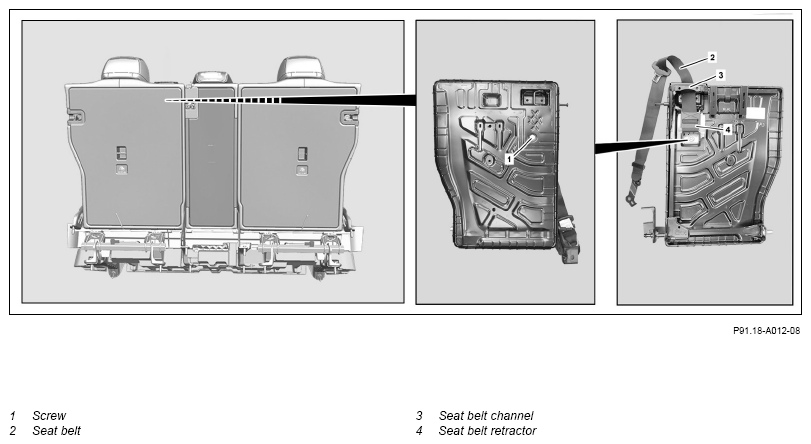

Shown on model 167.1 except code 567 (Vario rear bench seat)

	Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Release backrest cover from seat frame and remove with seat backrest padding.	Model 167.1 except code 567 (Vario rear seat) Model 167.3	AR91.18-P-1872MEA
		Model 167.1 with code 567 (Vario rear seat) Model 167.9 with code 226 (7-seater with 3rd seat row) except code 224 (Individual rear seats) except code M036 (Maybach version)	AR91.18-P-1872MEB
3	Unclip cover of seat belt passage (3) and guide seat belt out of cover.
4	Remove bolt (1) of seat belt retractor (4).	Bolt, center seat belt retractor to rear seat backrest	*BA91.40-P-1007-01U
5	Remove seat belt retractor (4) and guide seat belt (2) through seat belt duct (3).
6	Install in the reverse order.
