Remove/Install Refrigerant Pressure Sensor - AR83.30-P-5430OID
Model 167
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 167 with code 2U8 (Alternative refrigerant) | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 167 except code 2U8 (Alternative refrigerant) | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on handling refrigerant R134a | Model 167 except code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-01KOA |
| Notes on handling refrigerant R1234yf | Model 167 with code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-02A | |
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760ME | |
| 2 | Remove front center and left lower engine compartment lining. | AR61.20-P-1105ME | |

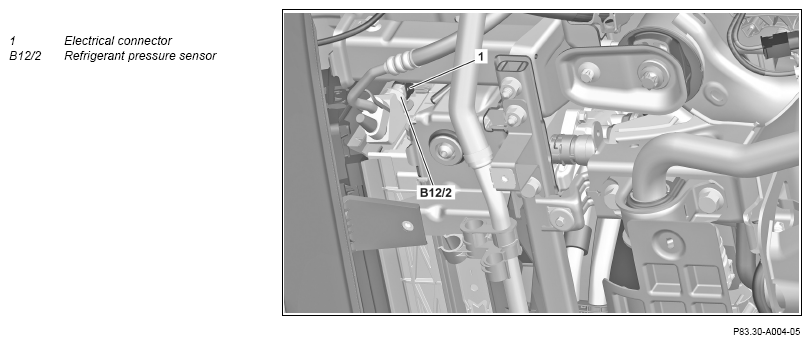

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove refrigerant pressure sensor (B12/2) and seal openings with suitable stop plugs. | *BA83.30-P-1005-01U | |
| Fig 3 | |||
| Fig 2 | |||
| 5 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA83.30-P-1005-01U | Refrigerant pressure sensor to condenser | Nm | 10 |
