Remove/Install Left Oxygen Sensor Upstream Of Catalytic Converter - AR07.04-P-0081MNO

Engine 176, 177 In Model 167

MODIFICATION NOTES

22.10.2019

Operation step variant added.

Operation step 1

Shown on Engine 176 In Model 167

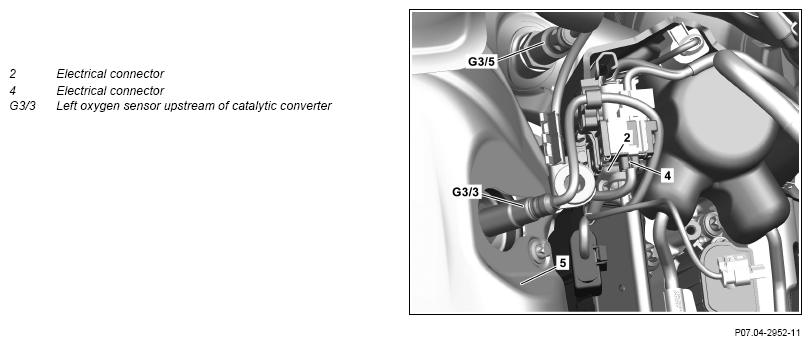

Fig 1: Left Oxygen Sensor Upstream Of Catalytic Converter Components Location - Engine 176, 177 In Model 167 (Shown On Engine 176)

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1.1	Remove left air filter housing.	Engine 176 in model 167 Do not install upper engine cover until after the leak test.	AR09.10-P-1151MNO
1.2	Remove upper engine cover.	Engine 177 in model 167
		Do not install upper engine cover until after the leak test.	AP01.10-P-2405-01E
2	Unclip electrical line of lambda sensor on left upstream of catalytic converter (G3/3).
3	Unclip electrical connectors (2, 4) from bracket.
4	Release and disconnect the electrical connector (2).
5	Remove lambda sensor on left upstream of catalytic converter (G3/3).	Coat thread with heat-resistant lubricating paste. Oxygen sensor upstream of catalytic converter to exhaust system at front	*BA14.00-P-1001-02B
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Socket wrench bit	Fig 2
6	Cover sensor tip of lambda sensor on left upstream of catalytic converter (G3/3) with protective cover.	When reusing lambda sensor on left upstream of catalytic converter (G3/5). Set of protective covers	Fig 3
7	Seal threaded hole of the lambda sensor on the left before catalytic converter (G3/3) in catalytic converter (2) with a suitable stop plug.	Record plug	Fig 4
8	Install in the reverse order.
	Check
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Perform engine test run. While doing so, check engine for proper operation and leak tightness.
