Remove/Install Purge Valve - AR47.30-P-8252MSC
Engine 256.9 in model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MSC | |
| 2 | Remove engine air intake duct upstream of air filter. | ||

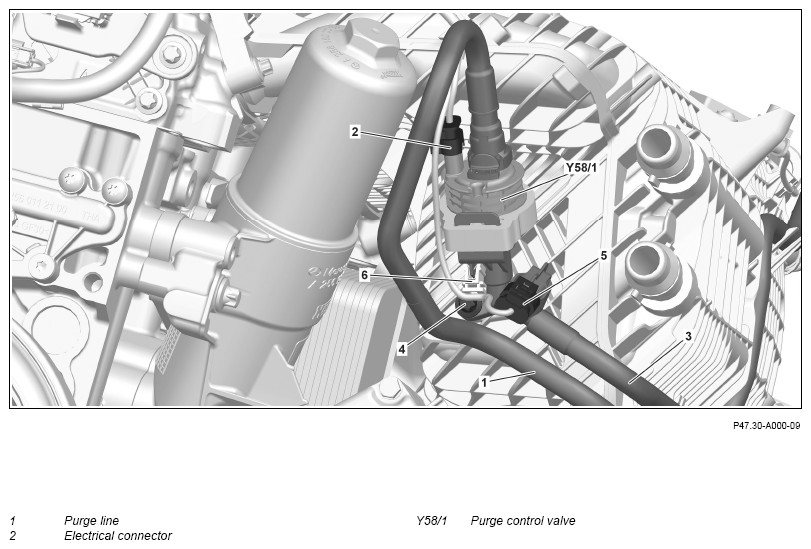

| 3 | Remove purge line (1) from purge control valve (Y58/1) and place to one side. | ||
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Remove purge control valve (Y58/1). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME |
