Remove/Install Engine Cover - AR01.10-P-2405MSC
Engine 256.9 In Model 167
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||

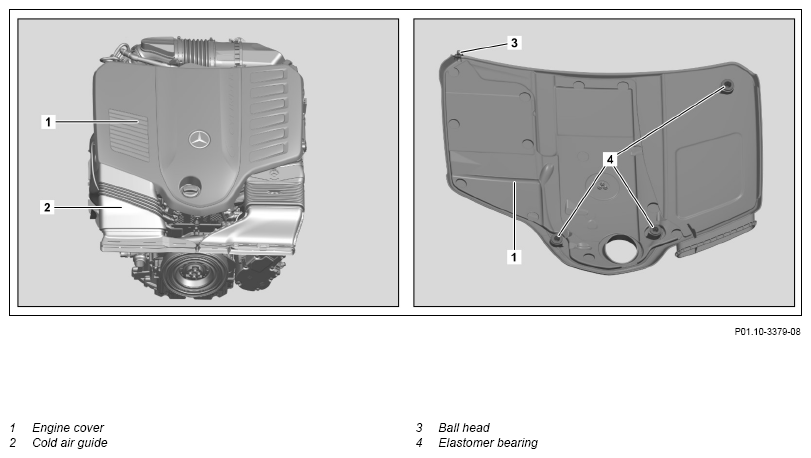

| 1 | Release cold-air ducting (2) at cold air intake manifold. | ||
| 2 | Detach ball head (3) from the elastomer bearing on the air filter housing. | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 3 | Release elastomer bearings (4) and remove engine cover (1) with cold-air ducting (2) in upward direction. | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 4 | Check the elastomer bearings (4) and the elastomer bearing at the air filter housing for damage, and replace them if necessary. | ||
| 5 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
