Remove/Install Check Valve On Charge Air Line - AR09.41-P-8970MSC

Engine 256.9 In Model 167 with code M016 (Uprated engine)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install

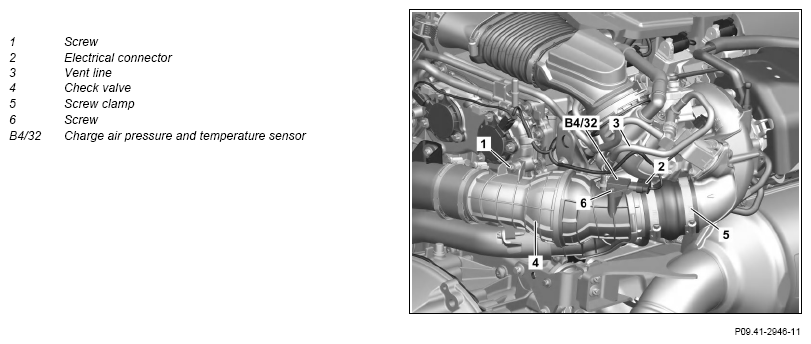

1	Remove charge air line from the check valve (4) to the additional compressor.		AR09.41-P-8952MSC
2	Release and disconnect electrical connector (2) from the charge air pressure and temperature sensor (B4/32).
3	Remove bleed line (3) from check valve (4).
4	Release screw clamp (5).	Screw clamp, boot to exhaust gas turbocharger	*BA09.41-P-1010-01MRT
5	Remove screw/bolt (1).	Screw, check valve to chain case cover	*BA09.41-P-1011-01MRT
6	Detach check valve (4) with boot from the exhaust gas turbocharger and remove upward.	: Slide on new boot up to end stop. Align marking on the new boot with the arrow on the exhaust gas turbocharger.
7	Remove boot from the check valve (4).	: Replace boot together with the screw clamp (5) and screw clamp on the check valve (4). Screw clamp, boot to exhaust gas turbocharger	*BA09.41-P-1010-01MRT
8	Remove screw (6) and remove charge air pressure and temperature sensor (B4/32).	When installing new check valve (4). : Replace O-ring and wet with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
		Screw, charge air pressure transducer	*BA09.41-P-1008-01MRT
		Assembly tool	Fig 1
9	Install in the reverse order.

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 256.9
BA09.41-P-1008-01MRT	Screw, charge air pressure transducer	Nm	6

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 256.9
BA09.41-P-1010-01MRT	Screw clamp, boot to exhaust gas turbocharger	Nm	6

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 256.9
BA09.41-P-1011-01MRT	Screw, check valve to chain case cover	Nm	10

Fig 1: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
