Remove/Install Right Turbocharger - AR09.40-P-6027MNO
Engine 176 In Model 167
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant of the engine cooling circuit. | AR20.00-P-1142MNO | |
| 2 | Remove left air filter housing. | AR09.10-P-1151MNO | |
| 3 | Remove ignition coil of cylinders 1 + 2 (T4). | AR15.12-P-2009MNO | |

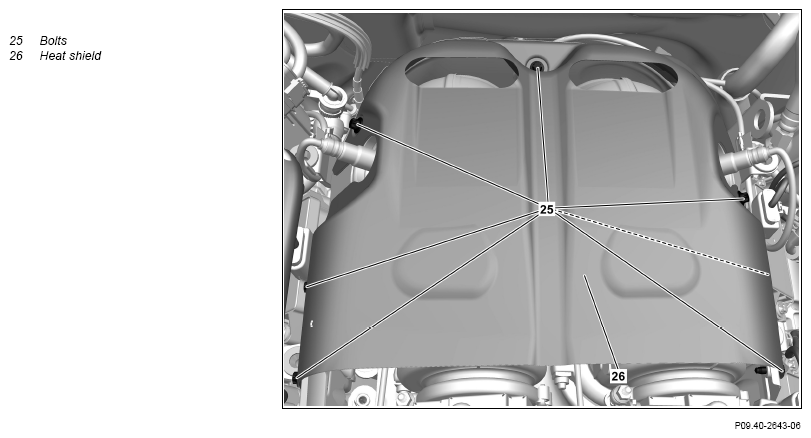

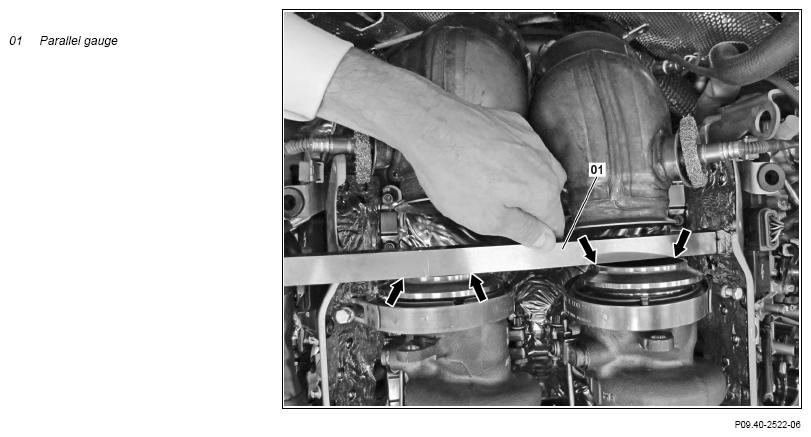

| 4 | Remove screws (25) and remove heat shield (26) in upward direction. | *BA09.40-P-1006-01ZA | |
| 5 | Remove right heat shield at right exhaust gas turbocharger (1). | AR09.40-P-6027-00XGA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA09.40-P-1007-01ZA | |||
| *BA86.10-P-1002-03B | |||
| 6 | Remove left catalytic converter from left exhaust gas turbocharger (2). | AR49.20-P-0101MNO | |
| 7 | Remove right catalytic converter from right exhaust gas turbocharger (1). | AR49.20-P-0102MNO | |

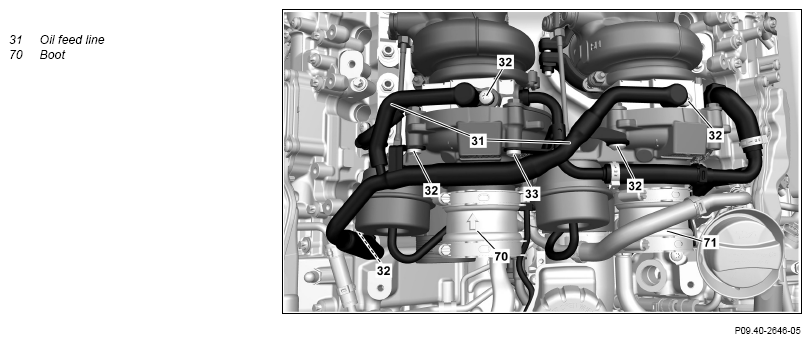

| 8 | Remove boot (70) at right exhaust gas turbocharger (1). | *BA01.20-P-1003-01J | |
| 9 | Remove vacuum hose (12) at right exhaust gas turbocharger (1). | ||

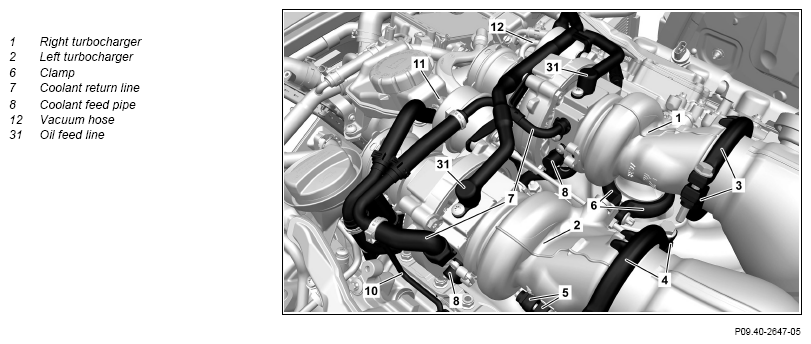

| 10 | Remove oil feed line (31). | AR09.40-P-6040MNO | |

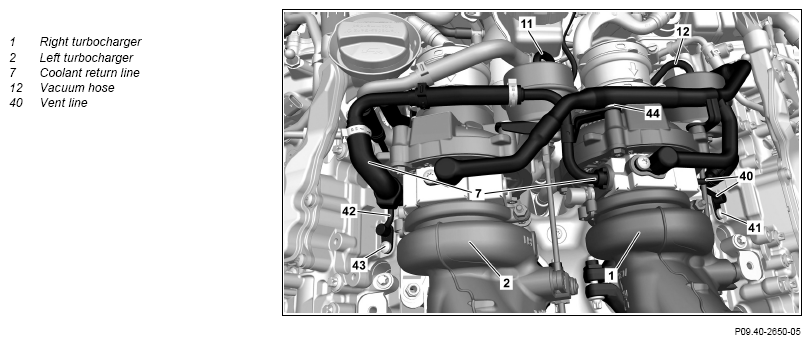

| 11 | Remove coolant return line (7). | AR20.20-P-1101MNO | |
| 12 | Remove coolant feed pipe (8). | AR20.20-P-1100MNO | |
| 13 | Remove bleed line (40) at right exhaust gas turbocharger (1). | AR20.20-P-1201MNO | |
| 14 | Remove charge air hose at right exhaust gas turbocharger (1). | *BA09.41-P-1018-01X | |
| 15 | Remove clamp (6). | *BA09.40-P-1001-01ZA | |
| Fig 2 | |||

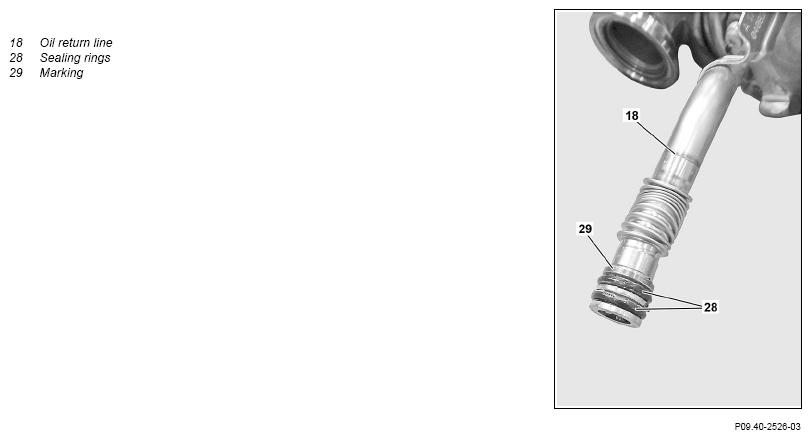

| 16 | Remove right exhaust gas turbocharger (1) with oil return feed line (18) in upward direction. | Leaks will occur otherwise on the oil return line (18). Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 17 | Remove oil return feed line (18) at right exhaust gas turbocharger (1). | Where replacing right exhaust gas turbocharger (1). | AR09.40-P-6042MNO |
| 18 | Install in the reverse order. | ||
| Check | |||
| 19 | Check engine oil level and correct if necessary. | AP18.00-P-1812SKI | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 20 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA01.20-P-1003-01J | Clamp, boot to exhaust gas turbocharger/air filter | Nm | 1, 5 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1001-01ZA | Bolt, turbocharger clamp to exhaust manifold | Nm | 21 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1018-01X | Screw, clamp for charge air hose to exhaust gas turbocharger/air filter housing/charge air cooler | Nm | 4 |
INERTING
| Number | Designation | Model 167 | ||||
|---|---|---|---|---|---|---|
| BA86.10-P-1002-03B | Pipe for inerting to engine | M6 | Screw | Nm | 8 | |
| Nut | Stage 1 | Nm | 8 | |||
| Stage 2 | ∠° | 30 | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
