Remove/Install Left Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0041MNO
Engine 176, 177 In Model 167

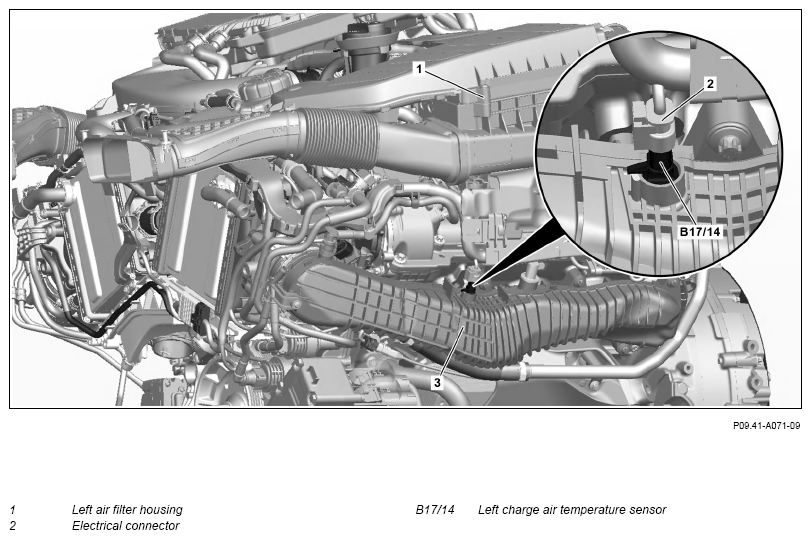

Fig 1: Left Charge Air Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 176, 177 In Model 167 (Shown On Engine 176)

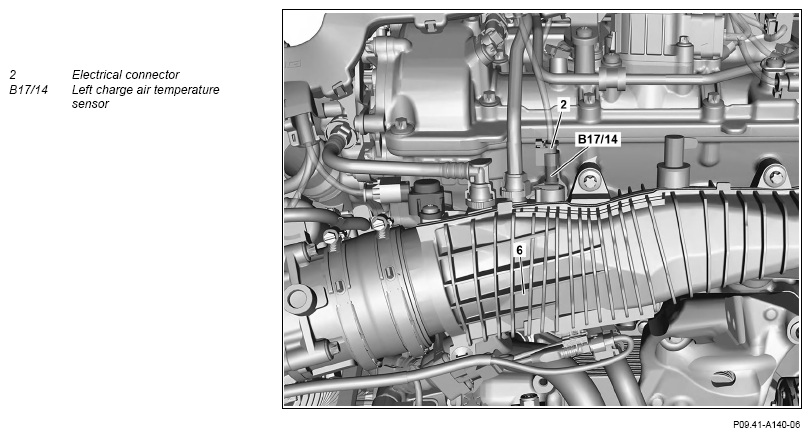

Shown on engine 176 in model 167
Shown on engine 176 in model 167
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove left air filter housing (1). | Engine 176 in model 167 |
AR09.10-P-1151MNO |
| 2 | Remove engine compartment fuse and relay module (F152/3). | Engine 177 in model 167 | AR54.15-P-0005ME |
| 3 | Remove upper engine cover. | Engine 177 in model 167 | AP01.10-P-2405-01E |
| 4 | Release and disconnect electrical connector (2), turn left charge air temperature sensor (B17/14) clockwise and remove upwards. | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 5 | Check sealing ring of left charge air temperature sensor (B17/14) for damage. | If damage is present, ↓ replace the charge-air temperature sensor on the left (B17/14). |
|
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury itself. Wear closed and snug-fitting work (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| Install | |||
| 8 | Install upper engine cover. | Engine 177 in model 167 | |
| AP01.10-P-2405-01E |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
