Center Roof Paneling Complete Replacement - Ar65.10-P-1000ME

Model 167

Except Code 413 (Panoramic Sliding Sunroof/Glass Roof)

Shown on model 167.1 except code 414 (Sliding roof)

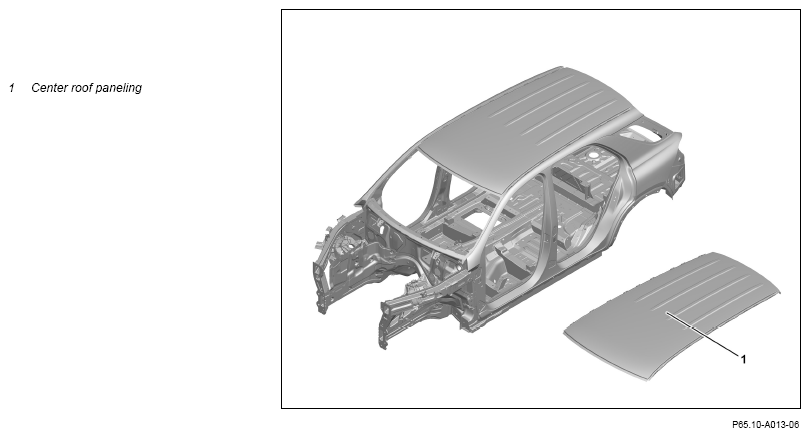

Fig 1: Center Roof Panel Component Location (Model 167) (Except Code 413 (Panoramic Sliding Sunroof/Glass Roof))

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove center roof paneling (1).	Model 167.1 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-02ME
		Model 167.3 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-02MEC
		Model 167.9 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-02MEX
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Set of spacer blocks	Fig 2
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
4	Prepare center roof paneling (1).	Model 167.1 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-03ME
		Model 167.3 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-03MEC
		Model 167.9 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-03MEX
		1K-zinc dust paint	*BR00.45-Z-1056-07A
5	Install center roof paneling (1).	Model 167.1 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-07ME
		Model 167.3 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-07MEC
		Model 167.9 except code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-1000-07MEX
		Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Teroson MS 222	*BR00.45-Z-1157-02A
		Set of spacer blocks	Fig 2
6	Clean weld joints and sheet metal flange.
7	Remove spark protection blankets.
8	Clean repair area.
9	Prime repair areas using a primer filler
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting		AH98.00-P-0003-01A
		Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.
10	Seal seam after repair.		AR97.10-P-4000ME
11	Paint repair areas and adjacent surfaces
	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting		AH98.00-P-0003-01A
		Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.
12	Supplement cavity preservation.		AR97.20-P-1500ME
13	Reinstall detachable parts in area of repair point.

Fig 2: Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA
