Remove/Install Rear Door Upper Hinge - AR72.12-P-2662ME

Model 167

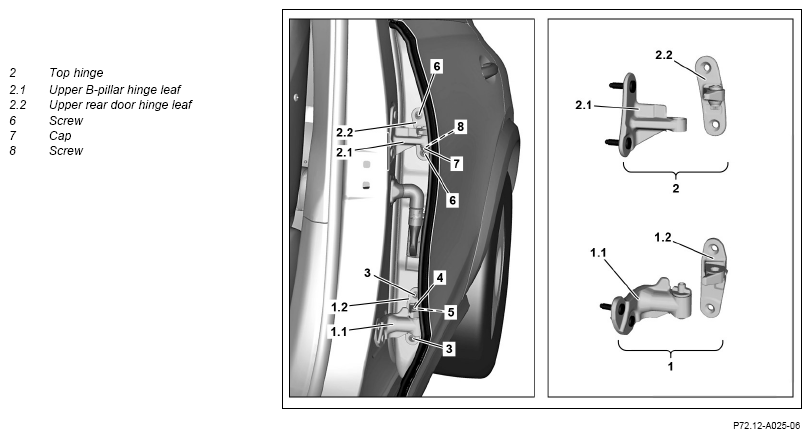

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

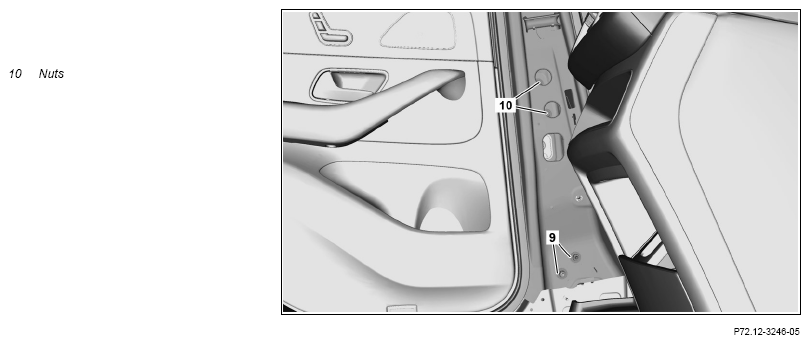

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Mark installation position of upper B-pillar hinge leaf (2.1) and upper rear door hinge leaf (2.2) on left or right side of vehicle.
2	Release upper B-pillar trim and place to one side.		AR68.30-P-4700ME
3	Support rear door using suitable means and fix in place.	Support rear door and fix in place. Otherwise the rear door can be damaged.
4	Remove cover (7).
5	Remove screw (8).	Bolt at hinge leaf connection	*BA72.12-P-1005-01K
6	Remove screws (6) and remove top rear door hinge leaf (2.2).	crew/bolt, hinge to rear door	*BA72.12-P-1002-01K
7	Carefully pull seat belt to the side until nuts (10) are accessible.
8	Unscrew nuts (10) and remove upper B-pillar hinge leaf (2.1).	Bolt/nut, hinge to B-pillar	*BA72.12-P-1003-01K
9	Install in the reverse order.
	Check
10	Check gap dimensions of rear door; adjust rear door if necessary.		AR72.12-P-0650ME
11	Repair paint damage at respective bolt heads.	Overview of MB materials and how they are processed	AR98.00-P-0150CW
12	Protect rear door and B-pillar in area of upper B-pillar hinge leaf (2.1) and upper rear door hinge leaf (2.2) against corrosion.	Cavity preservation following repair work	AR97.20-P-1500ME
	Risk of explosion and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
13	Protect rear door and B-pillar in area of upper B-pillar hinge leaf (2.1) and upper rear door hinge leaf (2.2) against corrosion; remove excessive wax.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
