Adjust Rear Door - AR72.12-P-0650ME

Model 167

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Check
1	Check gap dimensions on left or right rear door (1).		AR60.00-P-0900-01ME
		Front door to rear door	*BE60.00-P-1010-01LA
		Rear door to side wall	*BE60.00-P-1011-01LA
		Feeler gauge	Fig 1
2	Check position of upper joint lip on side wall.	The joint lip must be in contact with the upper side wall when the rear door (1) is closed.
	Remove

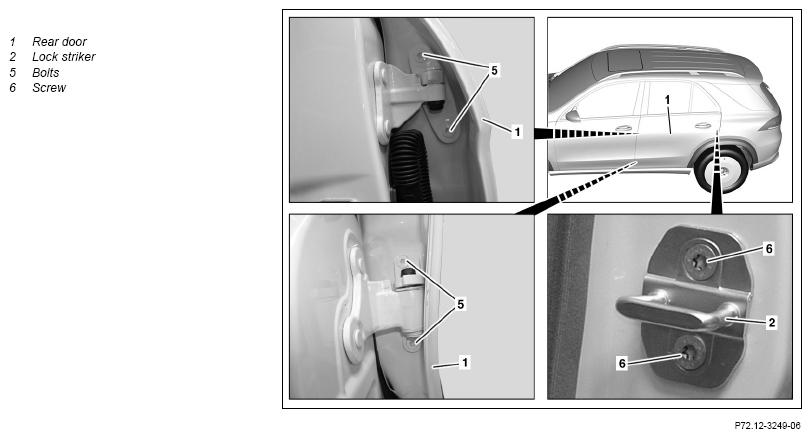

3	Mark installation position of the lock striker (2) using suitable means to facilitate installation.
4	Remove screws (6) and remove lock striker (2).

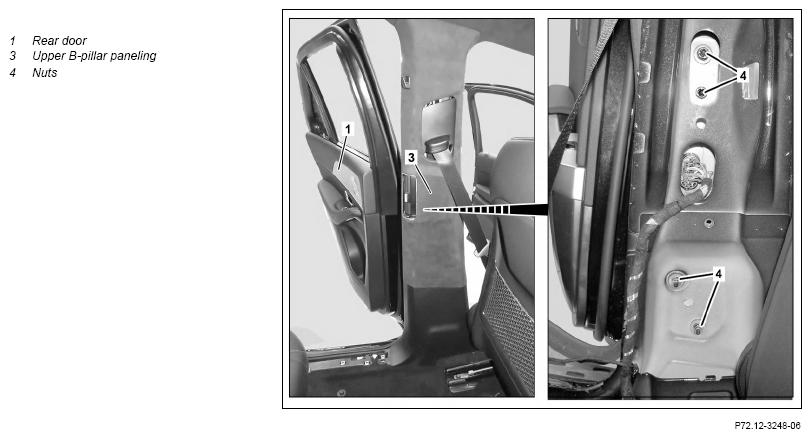

5	Release front reversible emergency tensioning retractor (A76 or A76/1) from the front of the B-pillar and place to one side with connected electric line.		AR91.40-P-1010ME
		Do not separate seat belt from upper B-pillar trim (3).
	Adjust
6	Loosen nuts (4) and move rear door (1) to adjust the corresponding gap dimensions.		AR60.00-P-0900-01ME
		Front door to rear door	*BE60.00-P-1010-01LA
		Rear door to side wall	*BE60.00-P-1011-01LA
		Feeler gauge	Fig 1
7	Tighten nuts (4).	Bolt/nut, hinge to B-pillar	*BA72.12-P-1003-01K
8	Loosen screws (5) and move rear door (1) to adjust transition between rear door (1) and front door.	The contour of the front door (1) must be flush with the contour of the rear door or may project by a maximum of 1 mm.
9	Tighten bolts (5).	Screw/bolt, hinge to rear door	*BA72.12-P-1002-01K
10	Insert lock striker (2) and position screws (6) up to end stop.	It must still be possible to adjust the lock striker (2).
11	Move the lock striker (2) to adjust the transition between the rear door (1), the rear fender and the roof paneling.	The contour of the rear door (1) must be flush with the contours of the rear fender and roof paneling or may project by a maximum of 1 mm.
12	Tighten screws/bolts (6).	Bolt, lock striker to C-pillar	*BA72.12-P-1004-01K
	Install
13	Repair paint damage on bolt head (5).	Overview of MB materials and how they are processed	AR98.00-P-0150CW
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
14	Protect rear door (1) and B-pillar in working area against corrosion; remove excessive wax.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
15	Install front reversible emergency tensioning retractor (A76 or A76/1) on the front of the B-pillar.		AR91.40-P-1010ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1010-01LA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1010-01LA	Front door to rear door	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1010-01LA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)
BE60.00-P-1010-01LA	Front door to rear door	For picture, see		AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.1	Model 167.3
BE60.00-P-1011-01LA	Rear door to side wall	Dimension "I"	mm	3 (±0, 5)	3 (±0, 5)
BE60.00-P-1011-01LA	Rear door to side wall	For picture, see		AR60.00-P-0900-01ME	AR60.00-P-0900-01ME

GAP DIMENSIONS

Number	Designation			Model 167.9
BE60.00-P-1011-01LA	Rear door to side wall	Dimension "I"	mm	3 (±0, 5)
BE60.00-P-1011-01LA	Rear door to side wall	For picture, see		AR60.00-P-0900-01ME

REAR DOOR

Number	Designation		Model 167
BA72.12-P-1002-01K	Screw/bolt, hinge to rear door	Nm	32

REAR DOOR

Number	Designation		Model 167
BA72.12-P-1003-01K	Bolt/nut, hinge to B-pillar	Nm	32

REAR DOOR

Number	Designation		Model 167
BA72.12-P-1004-01K	Bolt, lock striker to C-pillar	Nm	24

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1018-05A	Wax for engine compartment (400 ml spray can)	A 000 986 33 70 10
