Disassemble/Assemble Suspension Strut - AR32.25-P-1018FR

Model 257, 290 except code 489 (AIR BODY CONTROL)

MODIFICATION NOTES

15.10.2018 Special tool updated. Step 6

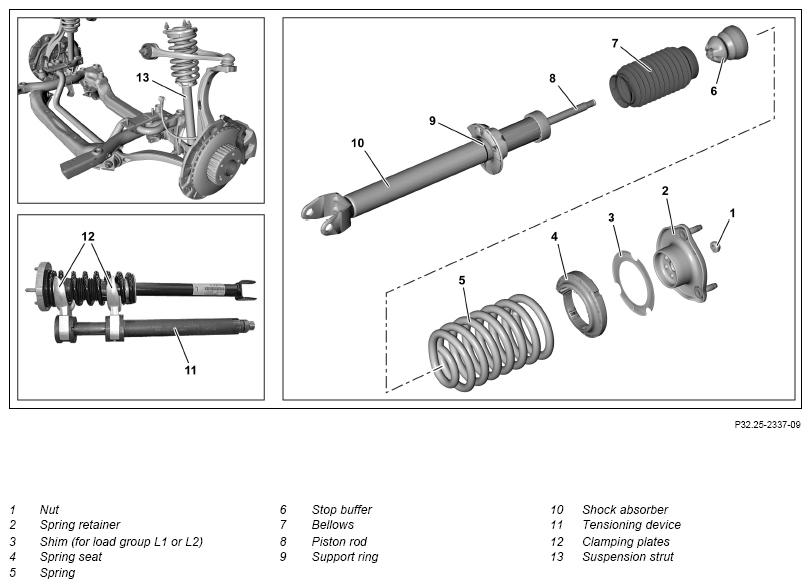

G14548504Courtesy of MERCEDES-BENZ USA

Shown on model 257 except code M005 (4MATIC)

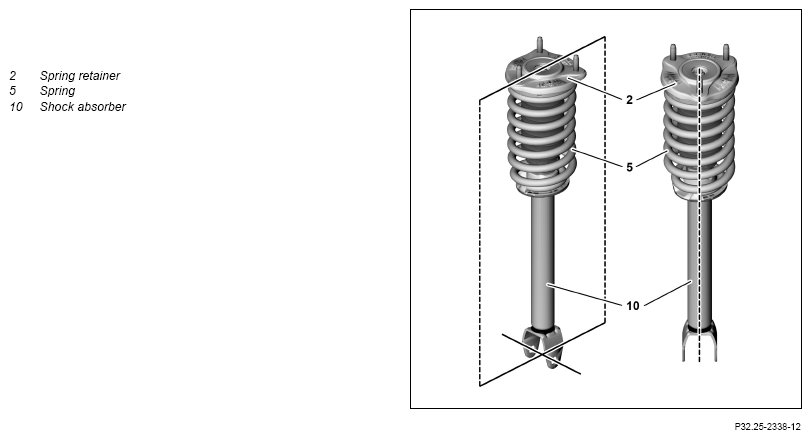

Alignment of spring cup (2) to shock absorber (10)

G14548505Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove suspension strut (13).   AR32.25-P-1017FR
ASSEMBLINGASSEMBLING Disassemble/assemble
2 Clamp tensioning device (11) in vise and insert clamping plates (12). SPECIAL TOOL Clamping plate Fig 2
SPECIAL TOOL Tensioning device Fig 3
3 Insert suspension strut (13) into tensioning device (11). IMPORTANT Insert suspension strut (13) to tension as many spring coils (5) as possible.
4 Place match marks on spring (5) and clamping plates (12) using adhesive strips. IMPORTANT Do not use a touch-up paint pen because the spring (5) is color coded.
5 Clamp spring (5) until spring retainer (2) is relieved. IMPORTANTAssembly:  Align spring retainer (2), as shown, to shock absorber (10).
6 Counterhold piston rod (8), unscrew nut (1) and remove spring retainer (2) as well as spring seat (4). IMPORTANT Do not use an impact wrench.
IMPORTANTAssembly:  Depending on the spring (5) involved, none, one or two shims (3) are fitted between the spring cup (2) and the spring seat (4).
The spring (5) has an appropriate marking on the fourth coil. The last two characters define the load group and thereby the installation of the shims (3).
L1 = Two shims (3)
L2 = One shim (3)
L3 = No shim (3)
TORQUE SPECIFICATION Nut, piston rod to head bearing
*BA32.25-P-1003-04P
SPECIAL TOOL Socket set Fig 1
7 Remove shock absorber (10) from spring (5).
8 Remove boot (7) and stop buffer (6).
9 Release tensioning device (11) and remove spring (5). IMPORTANTAssembly:  When replacing the spring (5) transfer the marking on the old spring (5) to the new spring
IMPORTANTAssembly:  Make sure that the marking on the fourth coil of the spring is not concealed by the tensioning device (11).
INSPECT Check
10 Check shock absorber (10) for damage and leakage. In the event of a problem,

Replace shock absorber (10).
11 Check boot (7), stop buffer (6) and spring seat (4) for wear. In the event of a problem,

Replace boot (7), stop buffer (6) or spring seat (4).
12 Assembly in reverse order
INSTALLING Install
13 Install suspension strut (13).   AR32.25-P-1017FR
SUSPENSION STRUTS

Number Designation Model 257 Model 290
BA32.25-P-1003-04P Nut, piston rod to head bearing Nm 30 39
Fig 1: Identifying Socket Set (001 589 03 16 00)
G14548506Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Clamping Plate (230 589 11 63 00)
G14548507Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Tensioning Device (203 589 01 31 00)
G14548508Courtesy of MERCEDES-BENZ USA
