Remove/Install Rear 360 Degree Camera - AR54.65-P-0029FR
Model 257
with code 501 (360° camera)
MODIFICATION NOTES
| 09.11.2020 | Remove trunk lid lock actuation. | Operation step 2 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trunk lid lock actuation. | AR88.50-P-5090FR | |

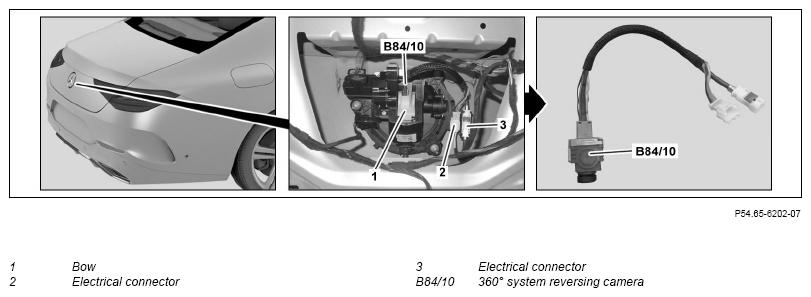

| 3 | Release bracket (1). | ||
| 4 | Unlock, disconnect and unclip the electrical connectors (2, 3). | ||
| 5 | Remove 360° system reversing camera (B84/10) inwards. | ||
| 6 | Install in the reverse order. | ||
| Calibrate | |||
| 7 | Carry out calibration drive and calibrate reversing camera for 360° system (B84/10). | ||
| AD00.00-P-2000-06FR |
