Remove/Install Backup Camera - AR54.65-P-0030FR
Model 257
with code 218 (Rear view camera)
MODIFICATION NOTES
| 09.11.2020 | Remove trunk lid lock actuation. | Operation step 2 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trunk lid lock actuation. | AR88.50-P-5090FR | |

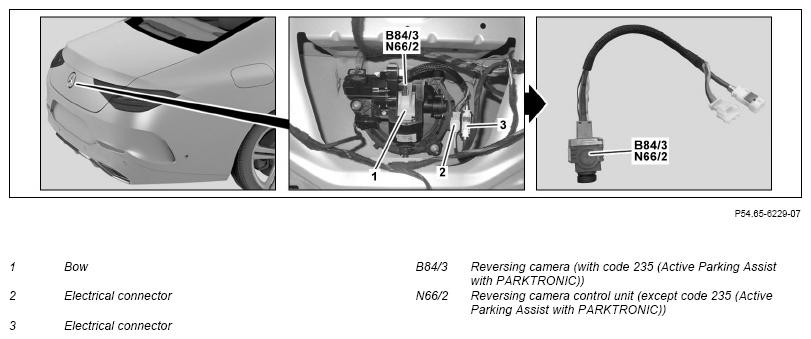

| 3 | Release bracket (1). | ||
| 4 | Release electrical connectors (2, 3), disconnect and unclip. | ||
| 5.1 | Pull reversing camera (B84/3) inward. | Model 257 with code 218 (Rear view camera) with code 235 (Active Parking Assist) |
|
| 5.2 | Pull out reversing camera control unit (N66/2) inwards. | Model 257 with code 218 (Rear view camera) except code 235 (Active Parking Assist) |
|
| 6 | Install in the reverse order. | ||
| Initial startup | |||
| 7 | Perform commissioning of reversing camera control unit (N66/2) using vehicle diagnosis system. | Model 257 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing reversing camera (B84/3). |
|
| AD00.00-P-2000-06FR | |||
| Calibrate | |||
| 8.1 | Calibrate reversing camera (B84/3) with vehicle diagnosis system. | Model 257 with code 218 (Rear view camera) with code 235 (Active Parking Assist) |
|
| AD00.00-P-2000-06FR | |||
| Fig 1 | |||
| 8.2 | Calibrate reversing camera control unit (N66/2) using vehicle diagnosis system. | Model 257 with code 218 (Rear view camera) except code 235 (Active Parking Assist) |
|
| AD00.00-P-2000-06FR | |||
| Fig 1 |
