Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610FR

Model 257

1-piston floating caliper brake

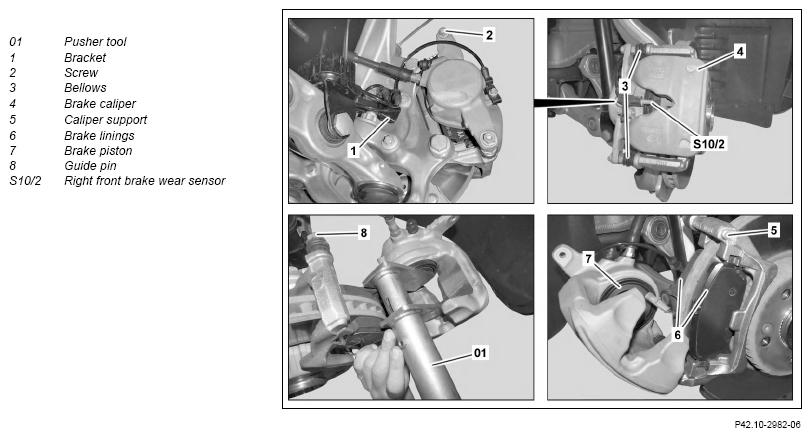

Fig 1: Front Axle 1-Piston Floating Caliper Brake Pads Components Location - Model 257
G14548937Courtesy of MERCEDES-BENZ USA
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service Brake is operated for the first time after repair work. Before starting the engine, actuate Brake pedal several times until pressure is built up and maintained in the Brake system. AS42.50-Z-0002-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of poisoning  from swallowing Brake fluid. Risk of injury  from skin and eye contact with Brake fluid Only pour Brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling Brake fluid. AS42.50-Z-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on repairs to Brake system   AH42.00-P-0003-01A
Notice  Notes on handling, transport and storage of composite Brake disks   AH42.10-P-9406-12LF
Notice  Brake fluid notes   AH42.50-P-0001-01A
REMOVING Remove
1 Remove cover above Brake fluid expansion reservoir
2 Clean area around cap on expansion reservoir for Brake fluid Assembly cleaner *BR00.45-Z-1028-04A
3 Unscrew the cap on the Brake fluid expansion reservoir and suction off some Brake fluid IMPORTANT This prevents the expansion reservoir overflowing when the Brake piston is pushed back (7).
4 Remove front wheels   AR40.10-P-1102A
5 Detach electrical line of front right Brake wear sensor (S10/2) from bracket (1) IMPORTANT Pay attention to the routing of the electrical line of the right front brakepad wear sensor (S10/2).
6 Detach front right Brake wear sensor (S10/2) from electrical connection
7 Unscrew bolt (2)
8 Release outer Brake lining (6) from Brake caliper (4) IMPORTANT The outer brakepad (6) is bonded and if the bonding is detached, the brakepads (6) must be replaced.
9 Fold back Brake caliper (4) NOTES
Do not subject the Brake hose and electrical line to tension and do not kink them. Otherwise, the Brake hose or electric line may be damaged.

10 Remove brakepads (6)
11   IMPORTANT Pay attention to the installation location of
  Pull brakepad wear sensor at front right (S10/2) out of backing plate of brakepad (6) the right front brakepad wear sensor (S10/2).
INSPECT Check
12 Check Brake disk for wear and condition
REFER TO MAINTENANCE     AP42.10-P-4256EW
    IMPORTANT Replace Brake disks as a complete set only.
In event of damage or excessive wear

Replace Brake disks.

      AR42.10-P-0220FR
13 Check Brake caliper (4) with detachable parts for damage If a problem arises

Replace Brake caliper (4) or relevant component parts.

      AR42.10-P-0070FR
14 Check Brake caliper support (5) for damage If a problem arises

Replace Brake caliper support (5).

      AR42.10-P-0222FR
15 Push back Brake piston (7) using pusher tool (01) SPECIAL TOOL Resetting device
If the Brake piston (7) is sluggish

Replace Brake caliper (4).
Fig 2
      AR42.10-P-0070FR
CLEAN Clean
16 Clean contact surfaces of Brake linings (6) on Brake caliper (4) and on Brake caliper support (5) NOTES
Do not use sharp-edged or pointed objects. Otherwise, the dust boot, Brake caliper (4) or the Brake caliper support (5) may be damaged.
IMPORTANT Adhesive residue must be completely removed from the contact surfaces of the Brake caliper (4).

    Assembly cleaner *BR00.45-Z-1028-04A
INSTALLING Install
17 Connect right front brakepad wear sensor (S10/2) to backing plate of brakepad (6)
18 Apply Brake paste to Brake caliper support (5)   AR42.10-P-0163-01FRA
    Brake paste, Varybond *BR00.45-Z-1072-06A
19 Remove protective foils from bonding surfaces of brakepads (6)
20 Insert brakepads (6) IMPORTANT Do not apply Brake pastes or lubricants to the brakepads (6).
IMPORTANT Only sets of Brake pads (6) approved by
Mercedes-Benz may be installed.

21 Insert Brake caliper (4) IMPORTANT Do not apply Brake pastes or lubricants to the Brake calipers (4).
22 Tighten screw (2) TORQUE SPECIFICATION Guide pin to Brake caliper support or bolt for guide pin to Brake caliper *BA42.10-P-1004-10X
23 Connect right front brakepad wear sensor (S10/2) to electrical connector
24 Fasten electrical line of right front brakepad wear sensor (S10/2) on bracket (1)
25 Install front wheels   AR40.10-P-1102A
26 Operate Brake pedal several times until brakepads (6) contact Brake disks
INSPECT Check
27 Check and correct Brake fluid level in expansion reservoir
REFER TO MAINTENANCE     AP42.10-P-4210B
28 Carry out Brake test on the test stand
REFER TO MAINTENANCE     AP42.00-P-4290BA
FRONT AXLE BRAKE CALIPER

Number Designation Model 257 (except 257.361) Model 257.361
BA42.10-P-1004-10X Guide pin to Brake caliper support or bolt for guide pin to Brake caliper Nm 35 35
Fig 2: Identifying Resetting Device (000 589 52 43 00)
G11128859Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1072-06A Brake paste, Varybond A 001 989 94 51
