Remove/Install Center Console - AR68.20-P-2000FR

Model 257

Courtesy of MERCEDES-BENZ USA

	Remove/install

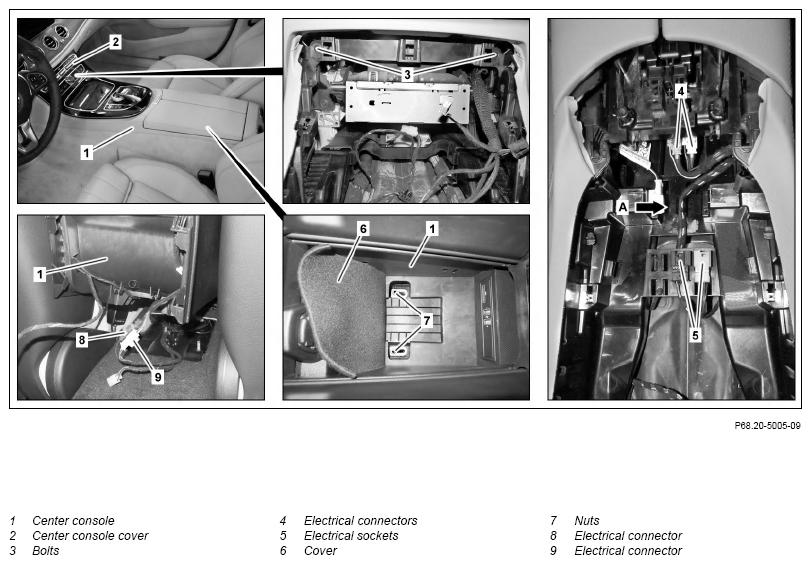

1	Remove cover of center console (2)		AR68.20-P-2350FR
2	Remove bolts (3)
3	Disconnect electrical connectors (4) and expose electrical wiring harness on center console (1)	The number can vary according to the equipment. Secure electrical wiring harness in guide (arrow A).
4	Unclip electrical sockets (5) from center console (1)	The number can vary according to the equipment.
5	Remove rear cover on center console (1)		AR68.20-P-2358FR
6	Place cover (6) to one side
7	Unscrew nuts (7)
8	Lift center console (1) at rear and disconnect electrical connectors (8, 9)	The number can vary according to the equipment.
9	Move center console (1) toward rear out of instrument panel
10	Install in the reverse order
