Remove/Install Rear Cover On Center Console - AR68.20-P-2358FR
Model 257
Model 290
except code 224 (Individual rear seats)

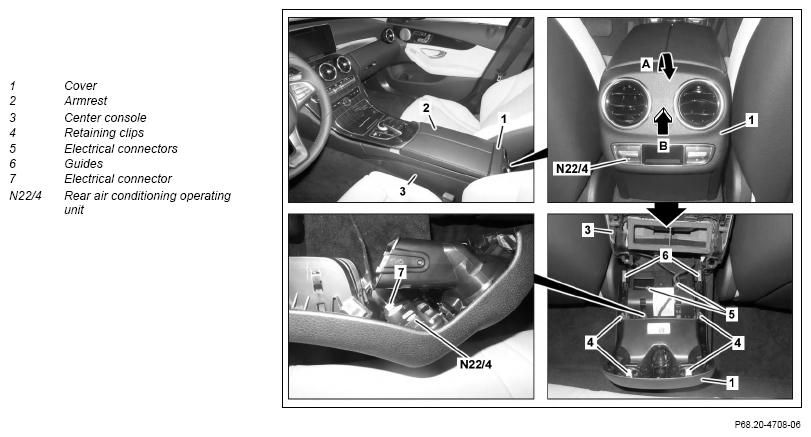

Shown on model 257 with code 581 (Automatic air conditioning)
Shown on model 257
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | Model 257 except code U67 (230 V socket in rear passenger compartment) except code U80 (115 V socket) Model 290 except code 224 (Individual rear seats) except code U67 (230 V socket in rear passenger compartment) except code U80 (115 V socket) |
|
| 1.2 | Disconnect ground line from battery. | Model 257 with code U67 (230 V socket in rear passenger compartment) Model 257 with code U80 (115 V socket) Model 290 with code U67 (230 V socket in rear passenger compartment) except code 224 (Individual rear seats) Model 290 with code U80 (115 V socket) except code 224 (Individual rear seats) |
AR54.10-P-0003FR |
| 2 | Open armrest (2) covers. | ||

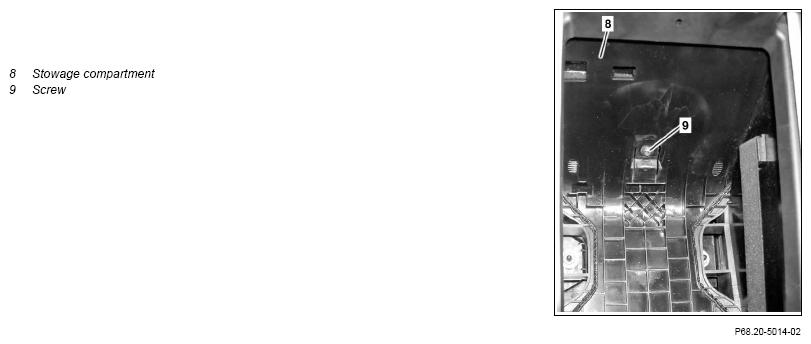

| 3 | Place cover in stowage compartment (8) of center console (3) to one side and remove screw (9). | Model 257 | |
| 4 | Unclip cover (1) at top at center console (3) in direction of arrow (A). | ||
| 5 | Move cover (1) rearwards and upwards out of center console (3) in direction of arrow (B) at an angle of approx. 450. | ||
| 6 | Disconnect electrical connectors (5). | ||
| 7 | Disconnect electrical connector (7) at rear climate control operating unit (N22/4). | Model 257 with code 581 (Automatic climate control) Model 290 with code 581 (Automatic climate control) except code 224 (Individual rear seats) |
|
| 8 | Install in the reverse order. |
