Remove/Install Wheels - AP40.10-D-1100TS

Model 907

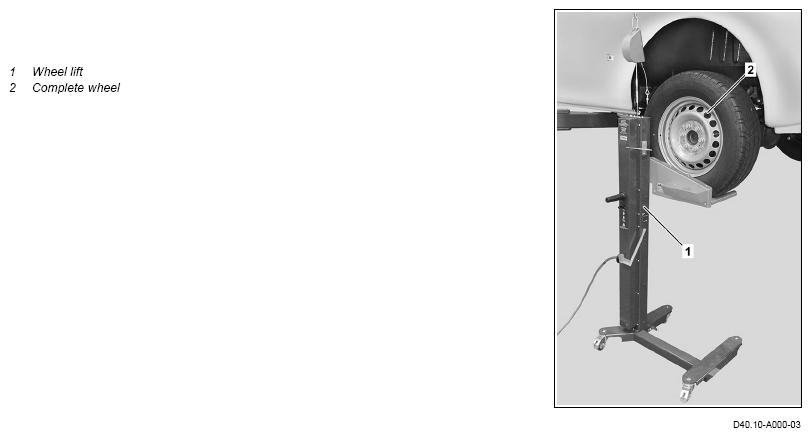

Illustration of commercially available wheel lift dolly

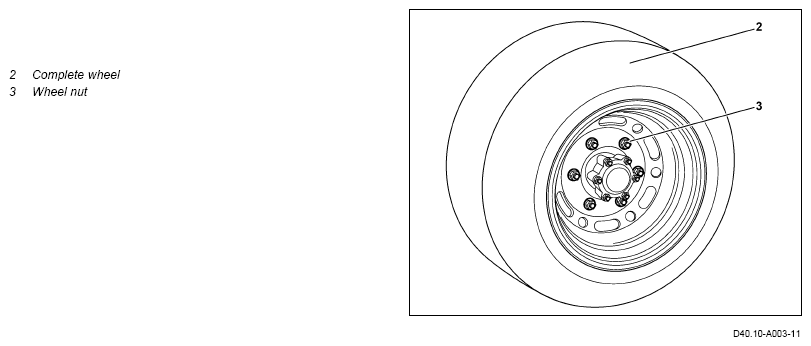

Illustration shows super-single tires

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	General information on rim/tire conversions		AH40.10-P-1050-01A
	Notes on lug bolts		AH40.10-N-1005-01A
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
	Tires - General information		AH40.10-N-1020-01A
	General information on malfunctions in the brake system		AH42.30-N-2007-01A
	TIREFIT tire sealant		AH40.10-P-0001-01A
	Remove
1	Raise vehicle.
			AR00.60-D-1000-04TS
2	Remove hub caps.	If installed.
3	Remove wheel and tire assemblies (2).	To do so, unscrew wheel bolts or unscrew wheel nuts. Use a wheel lift dolly (1). Commercially available devices/tools  Wheel lift
	Check
4	Check components of wheel bolt connections for corrosion and damage.
			AR40.10-D-1100-02A
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
5	Check tires for damage and condition.
		If corresponding findings are present, ↓ Perform suitable repair measures.	AR40.10-D-0001A
6	Check tire pressure.	If tire pressure wrong. ↓ Correct tire pressure.	AP40.15-D-4060TS
	Install
7	Position wheel and tire assemblies (2) and screw in wheel bolts or screw on wheel nuts.	Screw in wheel bolts or screw on wheel nuts in a cross pattern. Otherwise proper seating of the disk wheels is not guaranteed. Wheel hubs must be free of oil and grease. Use a wheel lift dolly (1). Commercially available devices/tools  Wheel lift
8	Lower vehicle.
9	Tighten wheel bolts or wheel nuts.	Tighten wheel bolts or wheel nuts in a cross pattern. Otherwise, proper seating of the disk wheels is not guaranteed. Model 907 with rear axle 741	*BA40.10-N-1001-01TS
		Model 907 with rear axle 741	*BA40.10-N-1002-01TS
		Model 907 with rear axle 748Wheel nut	*BA40.10-N-1001-01TSE
10	Install hub caps.	If removed.
11	Reinitialize tire pressure sensors using vehicle diagnosis system.	If one or more tires were replaced or if a wheel and tire assembly rotation was carried out from front to back or from left to right, or if one or more tire pressure sensors were replaced.
	Connect/disconnect diagnostic unit		AD00.00-D-2000-06TS
