Connect/Disconnect Diagnostic Unit - Ad00.00-D-2000-06TS

Model 907

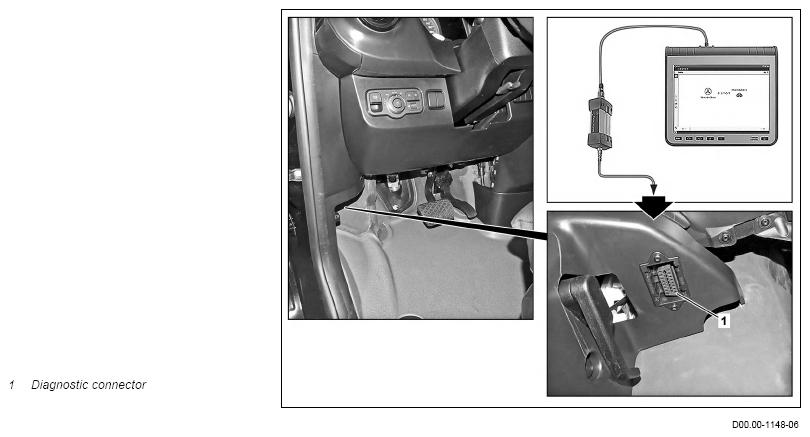

1. Connect diagnostic device to diagnostics connection (1).
2. Start "XENTRY".
3. Select the model series in the menu via the path Selection → Brand → Product group → Vehicle.

   The work procedures are menu-assisted.

4. Operate "Xentry Diagnostics" switching panel.

   All required information is automatically read out through this. Read and observe notes.

5. Operate "Start quick test" switching panel in the "Control unit overview" tab.

   The quick test is performed automatically. Any existing fault codes are read out and can then be rectified.

6. Delete stored fault codes.

   If fault codes are stored in the fault memory.

7. Disconnect diagnostic unit.
