Remove/Install Rear Axle Brake Caliper Support - Ar42.10-D-0221TS
Model 907
MODIFICATION NOTES
| 05.06.2020 | Information and reference link BT42.10-D-0221-01TS added |
| Picture no., etc. | Work notes | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install rear-axle brake caliper | AR42.10-D-0080TS | ||

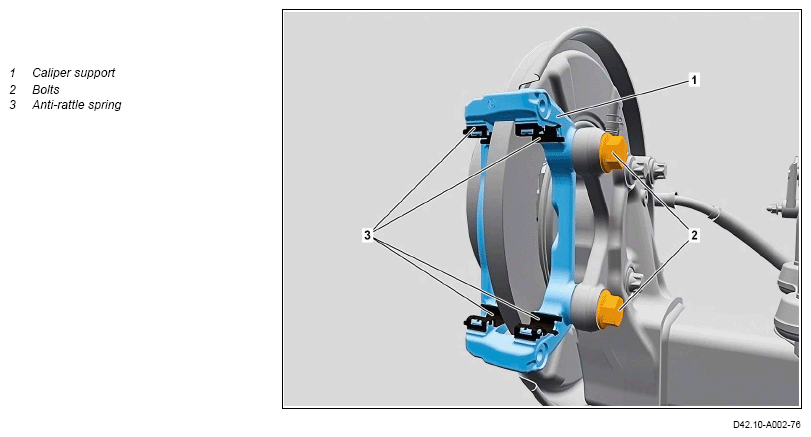

| 1 | Caliper support | ||
| Rear axle brake caliper support modified | Model 907 with code IT5 (5.0 tonner) with code IT5 (5.0 tonner) When replacing the brake caliper support (1), observe the notes on the modified version of the brake caliper support (1). |
BT42.10-D-0221-01TS | |
| 2 | Bolts | *BA42.10-N-1001-12TS | |
| 3 | Anti-rattle spring |
| Number | Designation | Model 907 except code IT5 (5.0 tonner) | Model 907 with code IT5 (5.0 tonner) | |||
|---|---|---|---|---|---|---|
| BA42.10-N-1001-12TS | Bolt, brake caliper support to rear axle tube | M14 | Stage 1 | Nm | 80 | - |
| Stage 2 | ∠ ° | 45 | - | |||
| M16 | Stage 1 | Nm | - | 110 | ||
| Stage 2 | ∠ ° | - | 30 | |||
