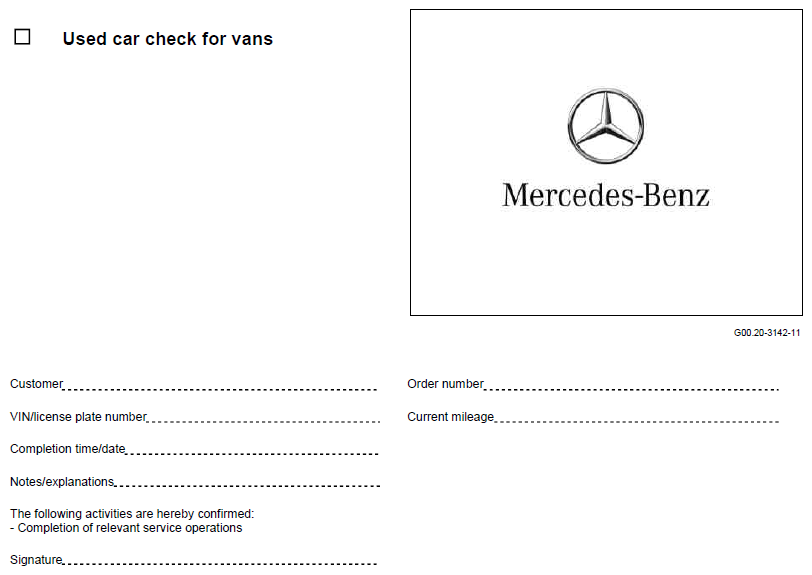

Used Car Check - AP00.20-D-0084A

Model 907

		Input condition not OK:	ⓧ
Completed
■

	General
□	Check vehicle for open service measures	- - - - - - - - - - - - - -	◦
		To be performed by the service advisor. If there are problems: ↓ Conduct open service measures subject to separate repair order.
□	If the vehicle needs to be moved, pay attention to engine and transmission operation	- - - - - - - - - - - - - -	◦
		If there are problems: ↓ Determine faults and conduct extended diagnosis subject to separate repair order.
□	Check mobility after initial registration and note down	- - - - - - - - - - - - - -	◦
		Note for Sales
	Vehicle exterior
□	Vehicle exterior: Check condition	- - - - - - - - - - - - - -	◦
		Check body, doors, hoods, covers, pop-up roof and boot. Check pop-up roof, bumpers and detachable parts for proper operation, damage, correct mounting and uniform gap dimensions.
□	Front window: Check condition	- - - - - - - - - - - - - -	◦
□	Exterior lights: Check function	- - - - - - - - - - - - - -	◦
□	Check windows for cracks, stone chipping, opacity and any other damage, and enter into table	- - - - - - - - - - - - - -	◦
		Vehicle glazing Exterior rearview mirrors Headlamps and backup lamp covers
□	Wiper blades: check condition	- - - - - - - - - - - - - -	◦
□	Headlamps: Check/correct setting	- - - - - - - - - - - - - -	◦
□	Check due date for main inspection (HU)	- - - - - - - - - - - - - -	◦
		If the last date of the main inspection is more than 3 months ago, the main inspection must be performed before the next inspection interval. Enter due date for main inspection here:
	Vehicle interior
□	Check warning and function indicator lamps in instrument cluster	- - - - - - - - - - - - - -	◦
		Model 907		AP54.00-D-5451TS
□	Check that interior illumination is functioning correctly	- - - - - - - - - - - - - - -	◦
□	Check horn for proper operation	- - - - - - - - - - - - - - -	◦
□	Function check on windshield wipers, windshield washer system and where applicable, headlamp cleaning system	- - - - - - - - - - - - - - -	◦
		Model 907		AP82.30-D-8252TS
□	Read out fault memory and then clear it	- - - - - - - - - - - - - - -
		Model 907		AD00.00-D-2000-06TS
		Rectify any fault codes after reading out subject to separate repair order.
□	Check kilometer reading for plausibility	- - - - - - - - - - - - - - -	◦
		Maintenance history/service booklet/DSB plausible Vehicle degree of wear relative to kilometer reading plausible Read out of fault memory plausible
□	Check operating instructions and service booklet for completeness and condition, if necessary update the digital operator's manual	- - - - - - - - - - - - - - -	◦
□	Check date when next service is due in ASSYST:	- - - - - - - - - - - - - - -	◦
		If the time remaining to the next service is less than 7500 km (4500 ml) or 6 months the service should be brought forward. Enter due date for service here:
□	Carry out function test of all electrical and mechanical components and special equipment	- - - - - - - - - - - - - - -	◦
		Check the following on equipment-specific basis: Locks Central locking Power window Pop-up roof and boot (see operator's manual) Seat adjustment and heater Mirror Seat belts Steering wheel lock Heater and air conditioning system Radio and communication systems Lids and flaps on stowage boxes/trays Cup holder
□	Check condition of vehicle interior equipment	- - - - - - - - - - - - - - -	◦
		Check the following on equipment-specific basis: Seats Trim panels Floor coverings and roof paneling Pay attention to bad odors due to e.g. soiling, tobacco smoke or an air conditioning system which has not been maintained properly.
	Trunk/load compartment
□	Check condition of luggage compartment or load compartment	- - - - - - - - - - - - - - -	◦
		Check the following on equipment-specific basis: Check trims and flaps for damage, wear and soiling. Pay attention to bad odors due to e.g. soiling, tobacco smoke or an air conditioning system which has not been maintained properly.
□	Check the contents of the luggage compartment or load compartment for condition and completeness	- - - - - - - - - - - - - - -	◦
		Check the following on equipment-specific basis: Hazard warning triangle Vehicle tool kit Trailer hitch EASY-PACK fix kit
□	TIREFIT tire repair kit: check expiry date	- - - - - - - - - - - - - - -	◦
		Vehicles fitted with TIREFIT
		Enter TIREFIT expiration date here: When the TIREFIT expiration date is reached: ↓ Replace TIREFIT, invoice as additional operation.
□	Check spare wheel tire pressure, correct and enter set tire pressure in the table	- - - - - - - - - - - - - - -	◦
		Vehicles with spare tire
		Model 907		AP40.15-D-4060TS
□	Check expiration date of first aid kit	- - - - - - - - - - - - - - -	◦
		Vehicles with first aid kit Enter first aid kit expiration date here: When the expiration date of first-aid kit is reached: ↓ Replace first-aid kit, invoice as an additional operation.
	Engine compartment
□	Check all visible parts in engine compartment for damage and leaks	- - - - - - - - - - - - - - -	◦
		Pay attention to soiling, leakage and visible damage of major assemblies and components (e.g. due to marten bites). Check fill level in brake fluid expansion reservoir.
□	Check engine oil level	- - - - - - - - - - - - - - -	◦
□	Engine cooling system: Check coolant level in coolant expansion reservoir	- - - - - - - - - - - - - - -	◦
		Model 907		AP20.00-D-2011TS
		____________°C Correct, subject to separate repair order.
□	Check windshield washer system fluid level	- - - - - - - - - - - - - - -	◦
		Model 907		AP82.35-D-8210TS
	Underside of vehicle
□	Check all major assemblies, systems and components for visible damage, wear and leakage	- - - - - - - - - - - - - - -	◦
		Engine Transmission, transfer case Steering Exhaust system Driving brake and parking brake Suspension Fuel system Propeller shafts Front and rear axle suspension and shock absorbers Underfloor paneling Check body and detachable parts for damage, soiling and corrosion damage.
	Wheel-and-tire assemblies, brakes
□	Check tires and disk wheels as well as spare wheel	- - - - - - - - - - - - - - -	◦
		Check wheel and tire assemblies for condition, wear and damage as well as ease of movement.
□	Check/correct tire pressure and enter tire pressure given in table	- - - - - - - - - - - - - - -
		Model 907		AP40.15-D-4060TS
□	Perform brake test and enter the result in the table	- - - - - - - - - - - - - - -
		Model 907		AP42.00-D-4290TS
□	Conduct a road test	- - - - - - - - - - - - - - -	◦
		Check starter, clutch, shift mechanism, transmission, steering and display instruments for proper operation. Pay attention to engine power, handling characteristics and noise development.
	Miscellaneous
□	Enter any other faults in table	- - - - - - - - - - - - - - -

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK
Condition NOK

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare wheel
bar/psi

REMARKS

Item	Remarks

DAMAGE

Item	Damage

MISCELLANEOUS
