Reset ASSYST Maintenance Computer - AP00.20-D-0040TSC

Model 907

except code C6L (Multifunction steering wheel)

	Reset
1	Close hood, doors and sliding doors.
2	Switch electronic ignition lock control unit (EZS) to position "1" (circuit 15R).

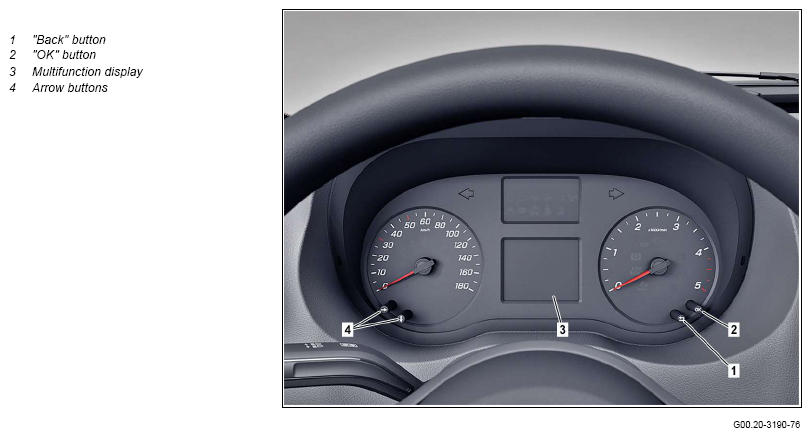

3	Use the "Back" button (1) to select the "Total distance" standard display in the multifunction display (3).
4	Press and hold "Back" button (1) for 2 s and/	The multifunction display (3) then shows the Workshop menu with the menu items: "Vehicle data", "Dynamometer test", "Change brakepad", "ASSYST PLUS".
5	Use one of the arrow buttons (4) on the instrument cluster to select the "ASSYST PLUS" menu item then confirm with the "OK" button (2).	The multifunction display (3) then shows the menu items: "Service data", "Full service", "Vehicle handover" (if not yet conducted), "Engine oil level measurement".
6	Use one of the arrow buttons (4) on the instrument cluster to select the "Full Service" menu item then confirm with the "OK" button (2).	The service items and the "Confirm service" menu item are shown on the multifunction display (3).
7	Use one of the arrow buttons (4) on the instrument cluster to select the "Service" mem item then confirm with the "OK" button (2).	The oil selection is shown on the multifunction display (3).
8	Use one of the arrow buttons (4) on the instrument cluster to select the specified oil quality and confirm.
	Service Information: Starting distance/oil change interval	With code JI5 (Starting distance, maintenance interval 30,000 km) or with code JI6 (Starting distance, maintenance interval 40,000 km) or with code JI7 (Starting distance, maintenance interval 60,000 km)	SI00.20-D-0053SG
		The chosen oil quality, "Service performed?" and the menu items "No", "yes" are shown on the multifunction display (3).
9	Use one of the arrow buttons (4) on the instrument cluster the "Yes" menu item and confirm.	"No take-back possible" and the "Confirm" menu item are shown on the multifunction display (3).
10	Use one of the arrow buttons (4) on the instrument cluster to select the "Confirmation" menu item and confirm.	In this way, the ASSYST maintenance computer is reset. "Full service performed" is shown on the multifunction display (3). If the service is not performed or only partly performed after resetting the maintenance computer.
		↓
		Reset the maintenance computer to the default value again. Reset service indicator to previous service	AP00.20-D-0044T
11	Press "Back" (1) button repeatedly until the "Total distance" standard display appears in the multifunction display (3).
12	Switch electronic ignition lock (EZS) control unit to position "0".
