Remove/Install Upper Window Frame Lining For Rear Window In Side Wall - Ar68.30-D-0023TSR

Model 907.6/7

Shown on model 907.7 on the left side of the vehicle with code IR4 (wheelbase 3,665 mm), with code V21 (luxury interior trim), with code EL9 (2-way front and rear speaker system) and except code T19 (left sliding door) for removed passenger bench seats

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove D-pillar trim (2).		AR68.30-D-4497TSR
2	Remove expansion rivet (4).	Clip remover	Fig 2

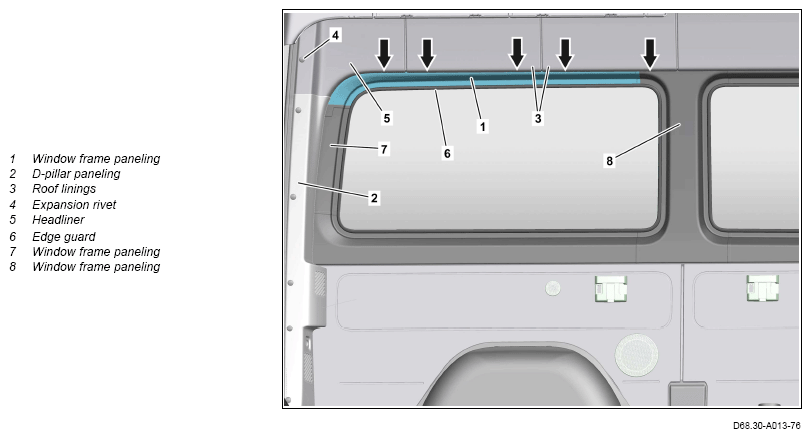

3	Release roof linings (3, 5) from the retaining tabs (arrows) from the side wall in the area of the rear window.
4	Release edge guard (6) in the area of the window frame lining (1).
5	Lift window frame lining (1), pry off, and remove.	: Ensure that the window frame lining (7) overlaps the window frame lining (1). Ensure that the window frame lining (1) overlaps the window frame lining (8). The window frame lining (1) is bonded to the side wall using tape.
		Long wedge	Fig 1
6	Remove masking tape residues from the side wall with a suitable tool.	Cleaner	*BR00.45-Z-1025-04A
7	Remove masking tape residues from the window frame lining (1) with a suitable tool.	When reusing the window frame lining (1).
		Cleaner	*BR00.45-Z-1025-04A
8	Attach new adhesive tape strips to the window frame lining (1).	When reusing the window frame lining (1). Ensure that the adhesive strips are positioned in the same way as the adhesive strips that were removed previously. Otherwise adhesion problems may occur.
		Double-sided tape with polyethylene foam support, Scotch-Mount 9528	*BR00.45-Z-1197-02A
9	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Clip Remover (452 589 01 63 00)
