Remove/Install Right Rail With Fuel Injectors - AR07.03-P-1051MNM

Engine 177 in model 217, 222

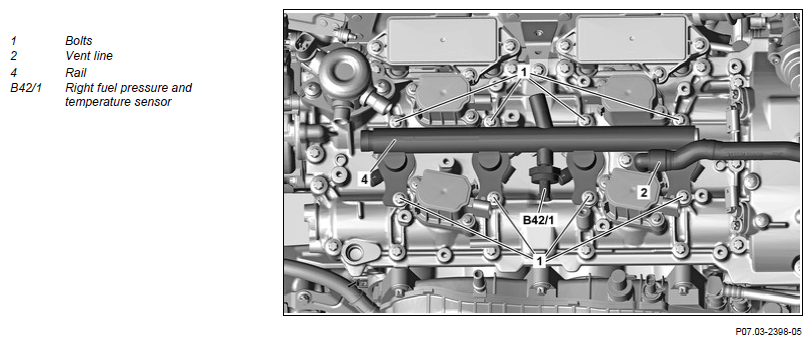

G15350840Courtesy of MERCEDES-BENZ USA

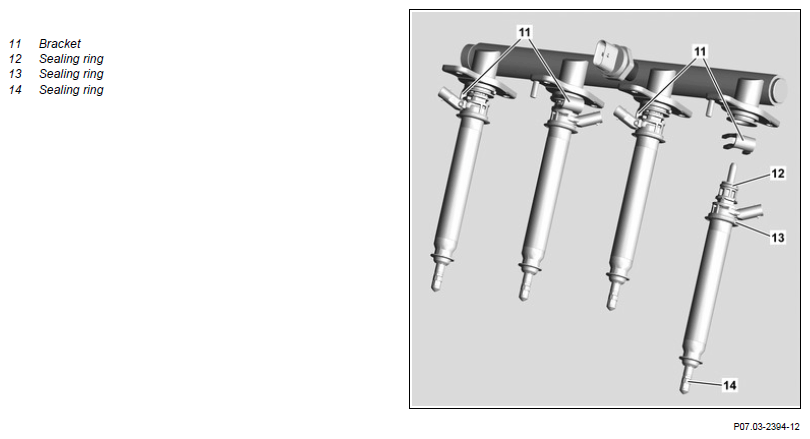

G15350841Courtesy of MERCEDES-BENZ USA

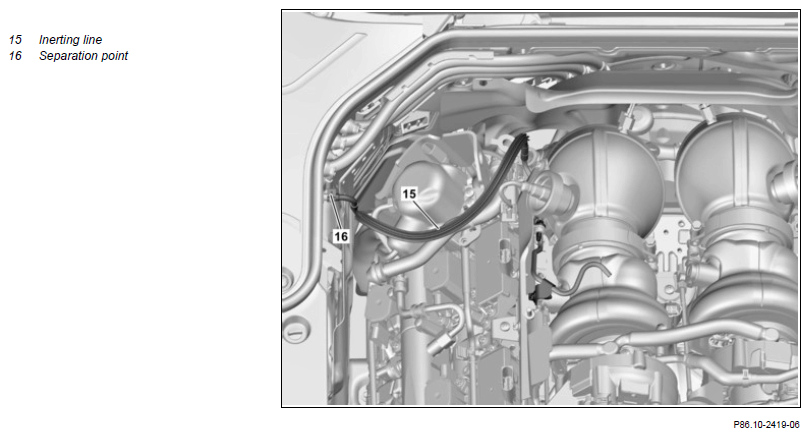

G15350842Courtesy of MERCEDES-BENZ USA

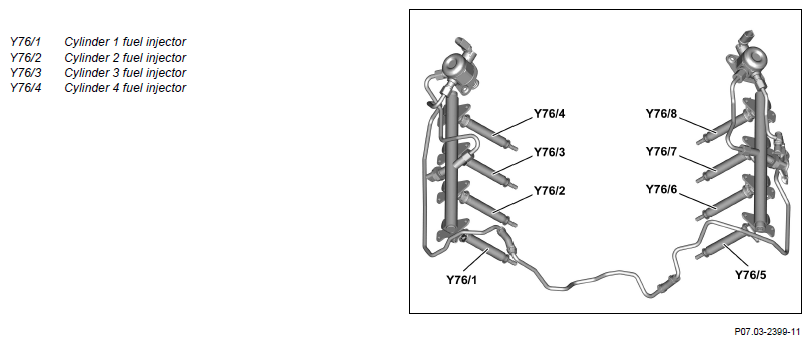

G15350843Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. AS18.00-Z-0001-01A
Notice Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVING Remove
1 Remove right high-pressure line   AR07.03-P-1002MNM
2 Remove right air filter housing   AR09.10-P-1152MNM
3 Remove inerting line (15) at connecting point (16) and place to one side
4 Remove right low-pressure line from cylinder head cover and fuel system high-pressure pump   AR07.03-P-1121MNM
5 Disconnect engine wiring harness   AR15.18-P-1000-06MNM
6 Remove bleed line (2) from cylinder head cover and seal openings with suitable stop plugs SPECIAL TOOL Record plug Fig 2
7 Remove soundproofing for rail (4)
8 Remove brackets (11)
9 Remove bolt (1) NOTES Unscrew screws (1) alternately by half a revolution in each case. Start in the center of the rail (4) and work outward.
Otherwise, damage to the rail (4) will occur.

10 Remove rail (4) from fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4), and seal connections with suitable stop plugs SPECIAL TOOL Record plug Fig 2
11 Mark fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) relative to respective cylinder On reuse of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
NOTES On reuse of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4), they must be inserted in the cylinder in which they were previously fitted.
Engine damage will occur otherwise.

12 Pull fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) out of cylinder head, and seal injector shaft holes with suitable stop plugs   AR07.03-P-0004-03MM
    SPECIAL TOOL Plug Fig 1
    SPECIAL TOOL Puller Fig 4
13 Check fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) for external damage, and replace if necessary On reuse of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
INSTALLING Install
14 Clean fuel connections at fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) NOTES If fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) are replaced, they must be installed immediately after removing transport protection caps.
Leaks can occur otherwise.
NOTES For cleaning the fuel connections, hold downwards.
Otherwise, failure of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) occurs.
Assembly cleaner
*BR00.45-Z-1028-04A
15 Replace sealing packages of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) on rail (4)   AR07.03-P-0004-02MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Drift Fig 5
16.1 Replace sealing rings (12, 13) on the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) On reuse of the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
16.2 Install new sealing rings (12, 13) on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) On replacing the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
17 Install new sealing rings (14) on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4)   AR07.03-P-0004-01MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Assembly tool Fig 3
18 Install fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) in rail (4), and fasten with new brackets (11) NOTES On reuse of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4), they must be inserted in the cylinder in which they were previously fitted.
Engine damage will occur otherwise.

19 Read off injector injection quantity adjustment coding on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) and note On replacing fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
20 Install rail (4) with fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) into right cylinder head
21 Tighten screws/bolts (1) NOTES Screw in screws (1) alternately by half a revolution in each case. Start in the center of the rail (4) and work outward.
Otherwise, damage to the rail (4) will occur.
TORQUE SPECIFICATION Bolt, fuel distributor to cylinder head cover
*BA07.52-P-1001-01J
22 Install new fuel pressure and temperature sensor on right (B42/1) When installing new rail (4). AR07.04-P-0202MNM
23 Attach vent line (2) to cylinder head cover TORQUE SPECIFICATION Bolt, vent line to cylinder head cover/turbocharger *BA01.20-P-1001-01J
24 Install soundproofing for rail (4)
25 Attach engine wiring harness   AR15.18-P-1000-06MNM
    TORQUE SPECIFICATION Bolt, engine wiring harness ground to cylinder head cover *BA15.10-P-1003-05F
    TORQUE SPECIFICATION M6 X 1 *BA00.10-P-1002-04A
26 Attach right low-pressure line to cylinder head cover and fuel system high-pressure pump   AR07.03-P-1121MNM
27 Install inerting line (15) at connecting point (16) INSTALLATION IMPORTANT Replace seal.
28 Install right air filter housing   AR09.10-P-1152MNM
29 Install right high-pressure line INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR07.03-P-1001MNM
30 Read out and erase fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
31 Store injector injection quantity adjustment coding in engine management control unit On replacing fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
32 Check fuel high-pressure circuit for leaktightness   AR07.03-P-1010-04MM
33 Perform an engine test run and check engine for proper operation and leak tightness
34 Install upper engine cover
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 X 1 Nm 9 13
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177.9
BA01.20-P-1001-01J Bolt, vent line to cylinder head cover/turbocharger Nm 9
FUEL DISTRIBUTOR

Number Designation Engine 177
BA07.52-P-1001-01J Bolt, fuel distributor to cylinder head cover Nm 9
GROUND STRAP

Number Designation Engine 177
BA15.10-P-1003-05F Bolt, engine wiring harness ground to cylinder head cover Nm 9
Fig 1: Identifying Plug (270 589 03 91 00)
G13744359Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11972128Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (272 589 00 43 00)
G13655962Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (278 589 00 33 00)
G13655957Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Drift (278 589 01 15 00)
G13656001Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
